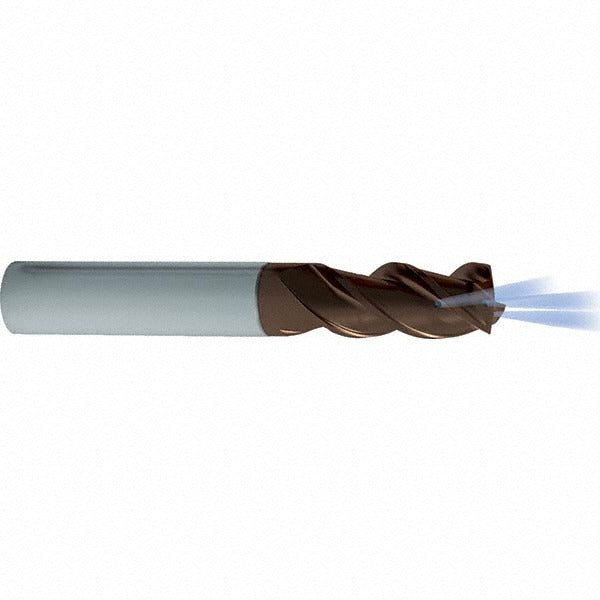

Guhring 9068720031700 Corner Chamfer End Mill 1/8in Carbide

Product Description

The GUHRING 9068720031700 is a solid carbide corner chamfer end mill designed for high-precision milling in demanding metal-cutting applications. At 1/8 inch in diameter with a 1/4-inch length of cut and 2-inch overall length, this single-end tool features three flutes with a variable helix geometry to reduce chatter and improve surface finish. The nano-Si TiAlSiN PVD coating provides thermal resistance and extended tool life when cutting ferrous and exotic materials. Centercutting capability allows the tool to plunge directly into workpiece material. Installed by machinists and CNC operators in production and job-shop environments.

This end mill is suited for steel, stainless steel, cast iron, superalloys, and titanium as primary workpiece materials, with secondary capability in non-ferrous metals. Its extended reach configuration, 3/4-inch reach length, and 0.117-inch neck diameter make it well suited for slotting, shouldering, ramp-down entry, helical interpolation, drill milling, and plunging and recessing operations. The 45-degree chamfer angle at 0.002-inch chamfer width delivers consistent edge-breaking and deburring on finish passes. Typical use is in CNC machining centers running right-hand cutting and right-hand flute direction toolpaths.

Key Features

• Variable helix flute geometry reduces harmonic vibration during aggressive cuts
• nano-Si TiAlSiN PVD coating rated for steel, stainless steel, cast iron, superalloys, and titanium
• Centercutting design supports direct plunge entry without a pre-drilled pilot hole
• 45-degree chamfer at 0.002 inches width for precise edge-breaking on finish passes
• Extended reach with 3/4-inch reach length and reduced neck for deep-feature access
• Micrograin solid carbide substrate for rigidity and wear resistance in roughing operations

Compatibility

Designed for use in standard straight-shank collet systems accepting a 1/8-inch shank diameter with h6 shank tolerance. Suited for CNC machining centers performing shouldering, slotting, ramp-down, helical interpolation, drill milling, and plunging operations on steel, stainless steel, cast iron, superalloys, titanium, and non-ferrous metals. Part of the GUHRING Series 6872.

Installation Notes

Installation is performed by a qualified machinist or CNC setup technician. Secure the shank in a collet or end mill holder rated for 1/8-inch h6 tolerance shank stock. Confirm spindle and coolant settings before operation - this tool does not support coolant-through delivery. Follow shop-specific feeds-and-speeds documentation for the target workpiece material; do not exceed tool deflection limits given the extended reach configuration.
