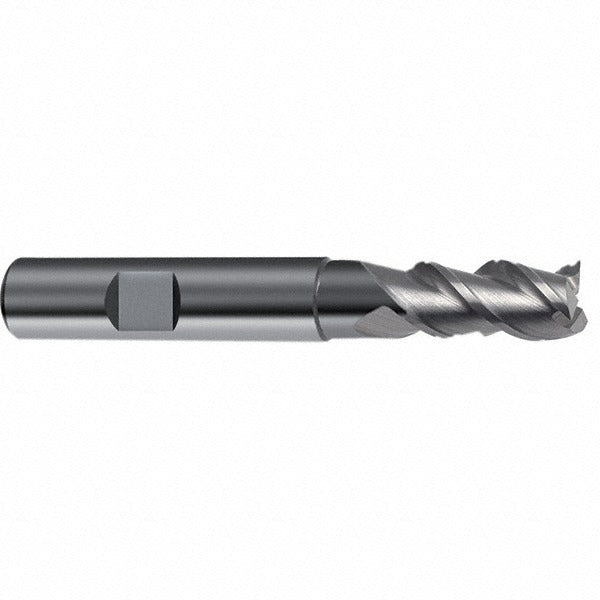

Guhring 9067750047600 End Mill 3/16 in 3 Flute Carbide

Product Description

The GUHRING 9067750047600 is a solid carbide roughing finishing end mill designed for aggressive material removal and fine finishing in a single tool. It features a 3/16-inch diameter with a matching 3/16-inch straight shank, a 5/8-inch length of cut, and a 2-inch overall length. The variable helix design, ranging from 39 to 41 degrees across three flutes, helps break up harmonics and reduce chatter during cuts. This is a right-hand cut, centercutting tool in the Series 6775 line, suited for machinists and tool-and-die professionals working in precision metal cutting applications.

This end mill is built for use in CNC machining centers and manual mills where both roughing and finishing passes are required in tight tolerances. The bright, uncoated carbide finish makes it a straightforward choice for ferrous and non-ferrous materials where coating compatibility is a concern. Its compact diameter and regular-length geometry make it well suited for slotting, profiling, and contouring in confined areas. A single-end configuration means it is a dedicated cutting tool with no reversible end.

Key Features

• Variable helix angle (39 to 41 degrees) reduces chatter and improves surface finish
• Solid carbide construction provides rigidity and wear resistance at small diameters
• Centercutting design allows plunge entry into the workpiece
• 3 flutes balance chip evacuation with cutting contact for small-diameter work
• Bright, uncoated finish suitable for a wide range of materials without coating interaction concerns
• Right-hand cut and right-hand flute direction for standard spindle configurations

Compatibility

Designed as an OEM-style replacement and standard tooling option for CNC or manual milling machines accepting a 3/16-inch straight shank end mill. Part of the GUHRING Series 6775.

Installation Notes

This tool is installed by machinists using a collet chuck or end mill holder sized for a 3/16-inch straight shank. Ensure the spindle is fully stopped and machine is in an idle, locked-out state before changing tooling. Verify collet runout is within acceptable tolerance for small-diameter carbide tools, as excessive runout increases the risk of tool breakage. Follow shop-standard feeds and speeds guidelines for solid carbide tooling at this diameter.
