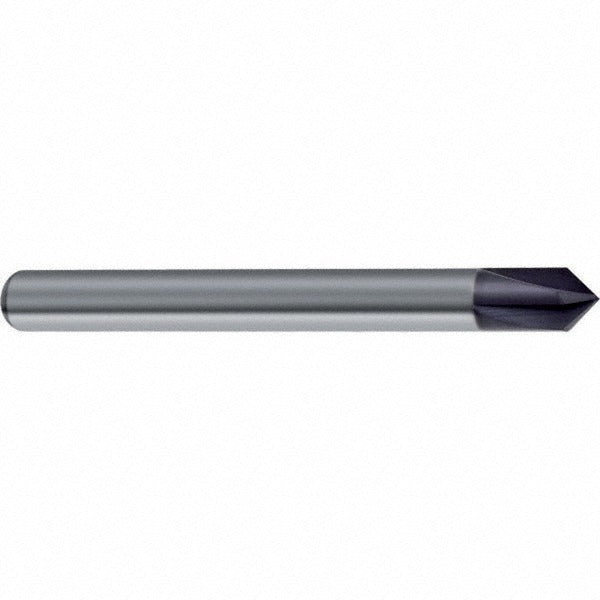

Guhring 9067130100000 Chamfer Mill 10mm 4 Flute Carbide

Product Description

The GUHRING 9067130100000 is a solid carbide chamfer mill designed for precision chamfering and edge-breaking operations on a range of workpiece materials. Built to Series 6713 specifications, this single-end tool features a 10 mm cutter head diameter, a 90-degree included angle, and four right-hand flutes for efficient chip evacuation. The TiAlN coating extends tool life by resisting heat buildup at higher cutting speeds. With a 72 mm overall length and a 10 mm shank diameter, it mounts directly into standard collet or end mill holders found on CNC machining centers and manual mills. Machinists and toolroom professionals are the primary installers and operators of this tool.

This chamfer mill suits chamfering, countersinking, and deburring applications across multiple material families including aluminum, cast iron, stainless steel, and steel. The 5 mm length of cut and 67 mm shank length make it well suited for operations where reach and rigidity are both required. It is appropriate for production environments running ferrous and non-ferrous workpieces where consistent chamfer geometry is critical to part quality.

Key Features

• Solid carbide construction provides rigidity and wear resistance across ferrous and non-ferrous materials
• TiAlN coating improves thermal resistance and extends tool life at elevated cutting speeds
• 90-degree included angle delivers accurate chamfer geometry in a single pass
• Four right-hand flutes promote smooth cutting action and efficient chip removal
• 10 mm shank diameter ensures compatibility with standard collet and end mill toolholding systems
• Single-end design simplifies indexing and tool management in the toolcrib

Compatibility

Designed for use in standard CNC machining centers and manual milling machines accepting a 10 mm shank. Suitable for chamfering aluminum, cast iron, stainless steel, and steel workpieces as specified by the manufacturer for Series 6713.

Installation Notes

Installation and operation should be performed by a qualified machinist or toolroom technician familiar with rotating cutting tool setup. Secure the 10 mm shank in a properly sized collet or end mill holder and torque the toolholder to the machine spindle per the machine manufacturer's specifications. Confirm runout is within acceptable tolerance before commencing cutting operations. Always power down and lock out the spindle before changing or adjusting tooling.
