Guhring 9055190043700 Cobalt Jobber Drill Bit 11/64

Product Description

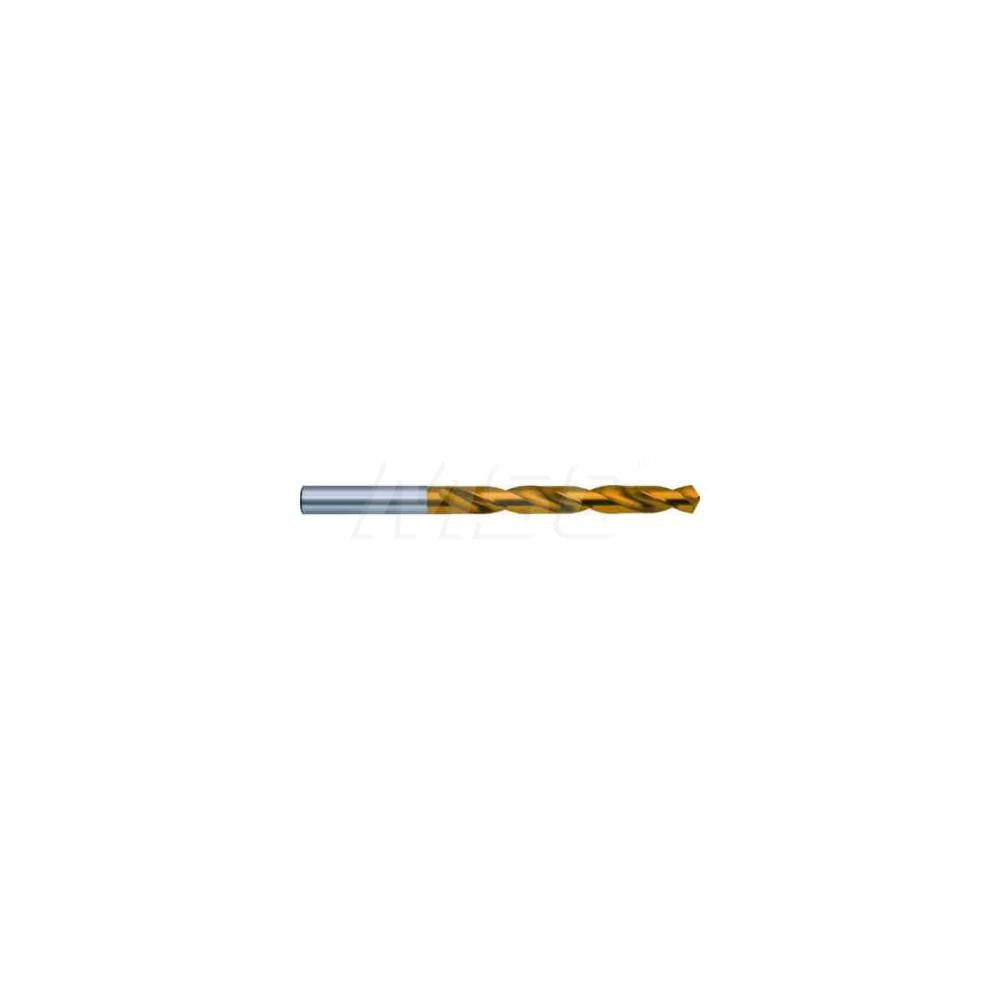

The GUHRING 9055190043700 is a cobalt jobber-length drill bit with a titanium nitride (TiN) coating, built to Series 5519 and manufactured to DIN 338 standards. It measures 11/64 inch (0.1719 inch) in diameter with an overall length of 80 mm and a flute length of 47 mm. The M35 cobalt steel construction provides elevated heat resistance compared to standard high-speed steel, making it appropriate for harder or more abrasive materials. The four-facet split point reduces walking on entry and lowers thrust requirements at the start of a cut. Licensed tradespeople and machining professionals use this bit in both hand-held and stationary drilling applications.

This drill bit is suited for use on aluminum, steel, cast iron, and non-ferrous metals, as indicated by workpiece material codes K, M, N, and P. The straight-cylindrical shank fits standard three-jaw chucks without adapters. The regular spiral flute geometry and web-thinned, tapered web design support clean chip evacuation in through-hole and blind-hole applications. It is a practical choice for maintenance, fabrication, and production drilling in residential, commercial, and light industrial settings.

Key Features

• M35 cobalt steel construction for improved heat and wear resistance
• TiN coating extends cutting life on ferrous and non-ferrous materials
• Four-facet split point reduces walking and lowers entry thrust
• Right-hand cut, regular spiral flute with web-thinned tapered web for efficient chip clearing
• Straight-cylindrical shank fits standard drill chucks without adapters
• Manufactured to DIN 338 specification for consistent dimensional accuracy

Compatibility

Designed as an OEM-style jobber-length drill bit suitable for standard three-jaw drill chucks accepting an 11/64 inch straight-cylindrical shank, compatible with workpiece materials classified under codes K, M, N, and P including aluminum, mild steel, and cast iron.

Installation Notes

This bit is installed and operated by machinists, maintenance technicians, and metalworking professionals. Always secure the workpiece firmly and confirm chuck is fully tightened before starting the spindle. Power down and de-energize the drilling equipment before changing bits. Do not exceed the recommended drilling depth of approximately 1.593 inches (40.45 mm) as specified for this bit diameter and flute length.
