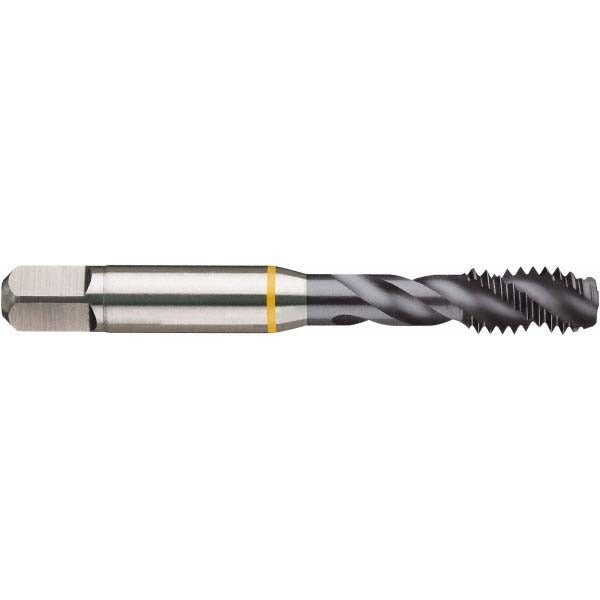

Guhring 9048813041660 Spiral Flute Tap 8-32 Unc Cobalt

Product Description

The GUHRING 9048813041660 is a spiral flute tap designed for blind hole threading in a wide range of metallic materials. It features a 3-flute, right-hand spiral design with a 40-degree helix angle that efficiently evacuates chips out of the hole during tapping operations. Built from cobalt high-speed steel and finished with GUHRING's Ignator coating, this tap handles demanding materials including stainless steel, heat-treated steel, alloy steel, and cast iron. The modified bottoming chamfer allows threading closer to the bottom of a blind hole than a standard plug tap. It is sized for 8-32 UNC threads and carries an H3 thread limit with a 2B/3B class of fit.

This tap is suited for production and maintenance machining environments where blind hole threading in tough or abrasion-resistant metals is required. The Series 4881 design targets applications in tool and die, general manufacturing, and repair shops working with alloy steels, stainless steels, case-hardened steels, ductile iron, malleable cast iron, and structural steel. The fast flute style and high helix angle make it well suited for CNC tapping operations as well as hand tapping in confined setups.

Key Features

• Modified bottoming chamfer for threading near the bottom of blind holes
• 40-degree right-hand helix for efficient chip evacuation in blind hole applications
• Cobalt HSS construction with Ignator finish for extended tool life in hard and abrasive materials
• H3 thread limit, 2B/3B class of fit for standard UNC 8-32 thread production
• Right-hand flute and right-hand thread - compatible with standard CNC and manual tapping setups
• No coolant-through requirement - suitable for conventional flood or mist coolant delivery

Compatibility

Designed for blind hole threading of 8-32 UNC threads in alloy steel, alloy tool steel, aluminum alloy, case-hardened steel, cast iron, ductile iron, free-cutting steel, heat-treated steel, malleable cast iron, stainless steel, structural steel, and tool steel.

Installation Notes

This tap should be installed in a tap holder or collet sized for a 0.168-inch shank diameter. Ensure the workpiece is securely fixtured and the tapping axis is aligned before engaging the tap to avoid thread form errors or breakage. Always bring the machine or drill press to a full stop before reversing to extract the tap from a blind hole. Follow applicable shop safety and machine guarding practices when operating CNC or manual tapping equipment.
