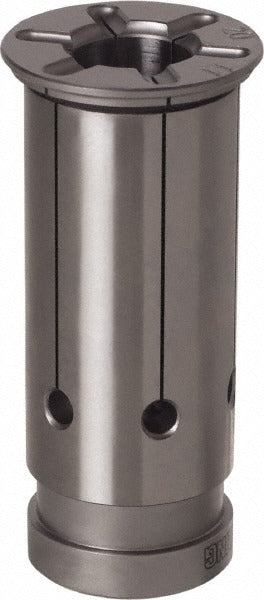

Guhring 9043690120200 Hydraulic Chuck Sleeve

Product Description

The GUHRING 9043690120200 is a steel hydraulic chuck sleeve designed for use with hydraulic toolholding systems in precision machining applications. Hydraulic chuck sleeves serve as the interface between the hydraulic chuck body and the cutting tool shank, allowing the chuck to grip a range of tool diameters by reducing the bore size to a smaller specified diameter. This sleeve is manufactured from steel for durability under the clamping pressures and rotational forces typical in CNC milling and turning operations. Installation is performed by qualified machinists or toolroom technicians as part of a hydraulic chuck assembly.

Hydraulic chuck sleeves are commonly used in CNC machining centers, milling machines, and high-speed spindle applications where runout accuracy and balanced toolholding are required. This sleeve allows a standard hydraulic chuck to accept smaller-shank tooling without replacing the entire chuck body, making it a practical solution for shops running varied cutting tool diameters on the same spindle platform. It is suited for both production and job-shop environments.

Key Features

• Steel construction for resistance to clamping deformation and wear
• Designed to reduce hydraulic chuck bore diameter for smaller-shank tooling
• Compatible with hydraulic toolholding systems requiring sleeve-style adapters
• Compact form factor suitable for high-speed spindle use

Compatibility

Designed as an OEM-style replacement or accessory sleeve for hydraulic chuck systems accepting this sleeve profile. Verify chuck body bore diameter and sleeve shank diameter before installation.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician familiar with hydraulic toolholding systems. Ensure the spindle is fully stopped and the machine is powered down before removing or installing any toolholding components. Clean the chuck bore and sleeve shank thoroughly before insertion to prevent contamination that could affect runout. Follow the chuck manufacturer's torque and pressure specifications for the hydraulic clamping port.
