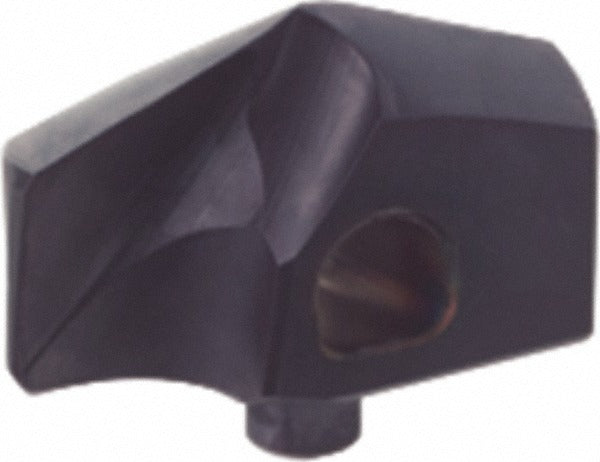

Guhring 9041150230000 Replaceable Drill Tip 23mm

Product Description

The GUHRING 9041150230000 is a replaceable drill tip from the 4115 series, designed for use in modular drilling systems that accept Guhring-style interchangeable tip toolholders. This solid carbide insert features a 23.00 mm cutting diameter, a 140-degree two-facet point geometry, and a nano-A PVD coating that extends tool life in demanding cut conditions. The helical flute design with web thinning reduces thrust forces and improves chip evacuation. It is installed and changed by licensed machinists and tool-and-die professionals working in precision machining environments.

This tip is engineered primarily for cutting stainless steel and performs well across a range of metalworking applications including steel, cast iron, superalloys, and titanium. The relieved cone insert geometry and seat size 230 match specific toolholder bodies in the 4115 modular system. Typical applications include hole-making operations in aerospace, oil and gas, and general manufacturing where consistent diameter tolerance and tool life are critical. Coolant-through capability is not supported by this tip.

Key Features

• 23.00 mm cutting diameter with 0.9055 inch decimal equivalent
• Solid carbide construction with nano-A PVD coating for wear resistance
• 140-degree two-facet point angle reduces entry force and improves centering
• Web-thinned helical flutes promote chip evacuation and lower thrust
• Relieved cone geometry with insert seat size 230 for secure clamping via screw or clamp method
• Rated for stainless steel (M), steel (P), cast iron (K), and superalloys and titanium (S)

Compatibility

Designed for use with 4115 series modular drill bodies accepting insert seat size 230. Compatible workpiece materials include stainless steel, steel, cast iron, superalloys, and titanium as indicated by manufacturer grade designations K, P, M, and S.

Installation Notes

Installation and replacement of this tip should be performed by qualified machinists following the toolholder manufacturer's clamping procedure. Ensure the spindle is fully stopped and the machine is in a safe, locked-out state before changing the insert. Use the correct torque tool as specified by the toolholder documentation, and inspect the insert seat for chips or contamination before seating the new tip. Do not exceed the recommended cutting parameters for the workpiece material grade.
