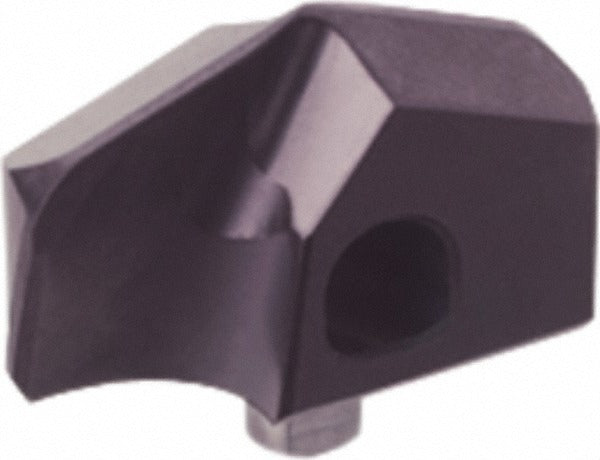

Guhring 9041130175000 Replaceable Drill Tip 17mm

Product Description

The GUHRING 9041130175000 is a replaceable drill tip from the 4113 series, designed for use with compatible modular drill bodies that accept an insert seat size 175. The tip features a 17.00 mm cutting diameter, a 140-degree included angle with a two-facet point geometry, and a web-thinned design that reduces thrust force at entry. It is manufactured from solid carbide and finished with a PVD-applied nano-Si coating for wear resistance in demanding cutting applications. With 2 helical flutes and a regular spiral configuration, this tip suits high-throughput production drilling environments where insert-style tooling is standard practice.

This replaceable tip is suited for drilling cast iron (Grade K) and steel (Grade P) workpieces in both production and job-shop settings. The modular design allows machinists and tooling technicians to swap worn tips without replacing the entire drill body, reducing tooling cost per hole. The 11.00 mm functional length and 8.00 mm flute length are appropriate for shallow-to-moderate depth drilling operations. It is a fit for CNC machining centers and drill presses where indexed, replaceable-tip drill systems are used.

Key Features

• 17.00 mm cutting diameter with insert seat size 175 for precise modular fitment
• 140-degree two-facet point with web thinning for reduced entry thrust
• Solid carbide construction for rigidity and edge retention in hard materials
• PVD nano-Si coating provides thermal and wear protection in K and P material grades
• 2 helical flutes with regular spiral for reliable chip evacuation
• Clamp and screw insert holding method for secure seating under load

Compatibility

Designed as an OEM-style replaceable tip for modular drill bodies that accept insert seat size 175 in the GUHRING 4113 series system. No coolant-through capability; verify drill body compatibility before ordering.

Installation Notes

Installation is performed by qualified tooling technicians or machinists. Power down and de-energize the machine spindle before seating or removing the insert tip. Use the manufacturer-specified clamp screw and torque to secure the tip in the body seat. Inspect the seat for chips or debris before each tip change to ensure proper seating and runout.
