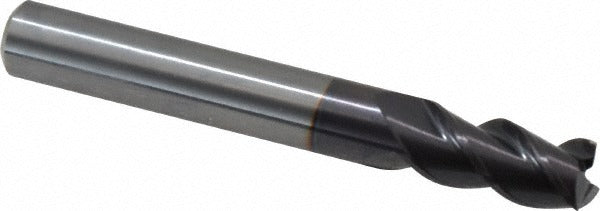

Guhring 9037410095000 Square End Mill 0.374in 3 Flute Carbide

Product Description

The GUHRING 9037410095000 is a solid carbide square end mill designed for high-performance material removal in ferrous and specialty metal machining applications. Part of the Series 3741, it features a 0.374-inch (9.50 mm) cutting diameter, three flutes, and a 45-degree helix angle that promotes efficient chip evacuation and reduced cutting forces. The FIREX coating provides thermal and wear resistance, extending tool life in demanding cutting environments. This is a single-end, center-cutting tool with right-hand cut and right-hand flute direction, making it suitable for standard milling operations including slotting, profiling, and peripheral milling.

This end mill is intended for use on CNC machining centers and manual mills where cast iron, stainless steel, and steel are the primary workpiece materials. The straight-cylindrical shank with a 0.374-inch diameter fits standard collet systems and tool holders. Secondary workpiece material compatibility includes non-ferrous metals and superalloys per the manufacturer material code designations. The regular length-of-cut configuration and non-extended reach make it a practical choice for conventional depth-of-cut applications in job shop and production environments.

Key Features

• Solid carbide construction for rigidity and wear resistance in hard material cutting
• FIREX coating for elevated thermal protection and extended tool life
• 45-degree helix angle promotes smooth chip flow and reduced cutting pressure
• Center-cutting capability allows direct plunge entry into the workpiece
• Three-flute geometry balances chip clearance and surface finish in ferrous materials
• Mill diameter tolerance h10 and shank diameter tolerance h6 for consistent fitment in precision tool holders

Compatibility

Rated for primary workpiece materials cast iron (K), stainless steel (M), and steel (P); secondary workpiece material codes N and S are also supported per GUHRING Series 3741 specifications. Straight-cylindrical shank fits standard collet chucks and end mill holders accepting a 0.374-inch shank diameter.

Installation Notes

Installation should be performed by a qualified machinist following the machine tool manufacturer's tooling guidelines. Ensure the spindle is fully stopped and locked out before inserting or removing the end mill from the tool holder. Confirm collet or holder bore size matches the 0.374-inch shank diameter before tightening. Verify runout at setup to maintain dimensional tolerance and tool life.
