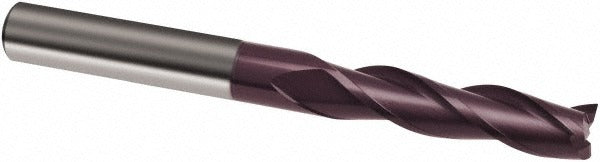

Guhring 9036800030000 Square End Mill 3mm Solid Carbide

Product Description

The GUHRING 9036800030000 is a solid carbide square end mill engineered for precision milling in demanding metal-cutting applications. Built on GUHRING Series 3680, this single-end tool features a 3.00 mm (0.1181 inches) cutting diameter, a 20.00 mm (0.7874 inches) length of cut, and an overall length of 75.00 mm. The 30-degree helix angle promotes efficient chip evacuation and smooth cutting action. The FIREX coating provides enhanced heat resistance and wear life, making this end mill well-suited for harder workpiece materials where uncoated carbide tools wear prematurely. Three right-hand spiral flutes deliver a balance of chip clearance and cutting edge strength at this diameter range.

This end mill is intended for use in CNC machining centers, manual mills, and toolroom operations where tight tolerances and fine surface finishes are required. The extra-long length of cut supports slotting and profiling in deeper pockets where standard-length tools cannot reach. With a 3.00 mm shank diameter matching the cutting diameter, it is suited for use with ER collet chucks and precision toolholders common in production and job-shop environments. Machinists and CNC programmers working with steel, stainless, and hard alloys will find the FIREX-coated carbide construction appropriate for their cutting strategies.

Key Features

• 3.00 mm (0.1181 inches) cutting diameter for fine, detailed milling work
• FIREX coating for improved wear resistance and heat management at elevated cutting speeds
• 30-degree helix angle promotes smooth chip flow and reduced cutting forces
• Extra-long length of cut at 20.00 mm (0.7874 inches) enables deep-pocket profiling and slotting
• Solid carbide construction provides rigidity and dimensional stability over standard HSS tooling
• Single-end, right-hand cut and flute configuration compatible with standard CNC spindle setups

Compatibility

Designed as a direct-fitment tooling solution for CNC machining centers and manual knee mills using ER collet or precision shrink-fit toolholders accepting a 3.00 mm (0.1181 inches) shank diameter.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Ensure the machine spindle is fully stopped and locked out before loading or unloading the tool. Seat the shank fully and evenly in the collet to the recommended gauge-line depth to avoid runout and premature tool failure. Do not exceed the tool manufacturer's recommended speeds and feeds for the workpiece material and coating type.
