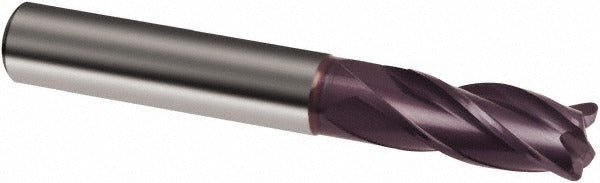

Guhring 9035620060050 Square End Mill 0.2362 in 4 Flute

Product Description

The GUHRING 9035620060050 is a solid carbide square end mill designed for precision milling of ferrous and difficult-to-machine materials. It features a 0.2362 inch (6.00 mm) cutting diameter, a 0.5118 inch length of cut, and a 4-flute spiral configuration with a 30-degree helix angle. The FIREX coating provides enhanced heat resistance and wear protection, extending tool life in demanding applications. This is a single-end, right-hand cut, right-hand flute design with a straight cylindrical shank. It is installed and operated by machinists and tool-and-die professionals working with CNC machining centers and manual milling equipment.

This end mill is suited for milling cast iron, stainless steel, and steel workpieces in both roughing and finishing operations. The extended reach design and 5.70 mm neck diameter make it appropriate for applications requiring access to deeper features or pockets where standard-reach tooling cannot clear the workpiece. It fits within the GUHRING Series 3562 product family and is built to h10 mill diameter and h6 shank diameter tolerances for consistent, repeatable fitment in standard tool holders.

Key Features

• Solid carbide construction for rigidity and wear resistance in ferrous materials
• FIREX coating for elevated heat resistance and extended tool life
• 4-flute spiral geometry with 30-degree helix angle for efficient chip evacuation
• Extended reach design with 21.00 mm reach length and 5.70 mm neck diameter
• Center-cutting capable for plunge entry operations
• Shank and mill diameter held to h6 and h10 tolerances respectively for precise tool holder fit

Compatibility

Designed for use with cast iron, stainless steel, and steel workpieces (ISO material codes P, M, K). Also compatible with secondary workpiece material codes N and S per GUHRING Series 3562 specifications. Fits standard straight-bore tool holders accepting a 0.2362 inch (6.00 mm) cylindrical shank.

Installation Notes

This end mill is installed by qualified machinists in CNC or manual milling equipment using a standard collet or end mill holder rated for the 6.00 mm shank diameter. Ensure the spindle is fully stopped and the machine is locked out before changing tooling. Verify tool holder runout is within acceptable limits before operation to avoid premature tool wear or breakage. Follow the machine tool manufacturer and GUHRING cutting data recommendations for feed rate, spindle speed, and depth of cut for the specific workpiece material.
