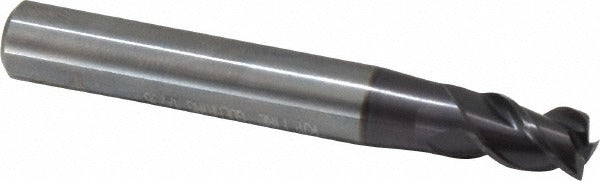

Guhring 9035400070000 Square End Mill 7mm 3 Flute Carbide

Product Description

The GUHRING 9035400070000 is a solid carbide square end mill designed for high-performance material removal in demanding machining applications. Built to Series 3540 specifications, it features a 7.00 mm (0.2756 inch) cutting diameter, a 45-degree helix angle, and a FIREX coating that extends tool life in abrasive and high-heat cutting environments. With three flutes and a stub-length profile, it delivers a strong balance of chip evacuation and rigidity in short-reach setups. This tool is intended for use by machinists and tool-and-die professionals working on CNC machining centers and manual mills.

This end mill is suited for milling operations in ferrous and stainless workpieces across light manufacturing and precision machining environments. The centercutting geometry allows plunge entry, expanding its use in slotting, profiling, and pocketing operations. The 8.00 mm straight-cylindrical shank fits standard collet chucks and end mill holders common in both horizontal and vertical machining center setups. Primary workpiece materials include cast iron, stainless steel, and steel. Secondary workpiece material compatibility extends to non-ferrous and superalloy applications.

Key Features

• Solid carbide construction provides stiffness and wear resistance for ferrous and stainless cutting
• FIREX coating improves heat resistance and extends tool life in high-speed applications
• 45-degree helix angle promotes smooth chip flow and reduces cutting forces
• Centercutting design allows direct plunge entry without pre-drilling
• Right-hand cut and right-hand flute configuration for standard CNC and manual mill spindles
• Stub-length profile maximizes rigidity and minimizes deflection in short-reach operations

Compatibility

Designed for use in standard 8.00 mm collet chucks, shrink-fit holders, and end mill holders on CNC machining centers and manual mills. Primary workpiece materials are cast iron, stainless steel, and steel (ISO material codes K, M, P). Secondary compatibility includes non-ferrous and superalloy materials (ISO codes N, S).

Installation Notes

Installation should be performed by a qualified machinist following the machine tool manufacturer torque and runout specifications for collet or end mill holder assemblies. Ensure spindle is fully stopped and machine is powered down before changing tooling. Verify shank seating depth and minimize overhang to reduce deflection; stub-length tools are most effective when the shank is held at maximum recommended grip depth. Follow applicable shop safety procedures for carbide tooling handling.
