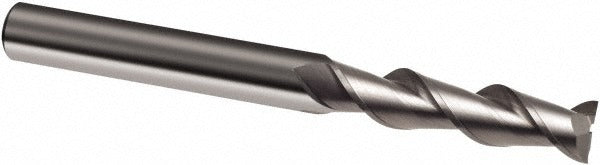

Guhring 9033580120000 Square End Mill 0.4724in 2 Flute Carbide

Product Description

The GUHRING 9033580120000 is a solid carbide square end mill designed for precision milling operations in metalworking and machining applications. With a 0.4724-inch (12 mm) cutting diameter and a 1.7717-inch (45 mm) length of cut, this tool handles slotting, profiling, and peripheral milling in a wide range of materials. The 45-degree helix angle promotes efficient chip evacuation and smooth cutting action. It is a single-end, right-hand cut tool with a spiral flute configuration and a bright, uncoated finish. Machinists and CNC operators working in job shops, aerospace, mold and die, and general manufacturing are the primary users of this tool.

This end mill is built for long-reach applications where standard-length tools cannot reach the required depth of cut. The 0.4724-inch shank diameter matches the cutting diameter, allowing direct mounting in standard collets, shrink-fit holders, or milling chucks. It is suited for use on CNC vertical machining centers and milling machines running right-hand spindle rotation. The two-flute design provides adequate chip clearance when cutting softer materials or when deep-slot milling is required.

Key Features

• Solid carbide construction for rigidity and wear resistance in demanding cuts
• 45-degree helix angle for efficient chip evacuation and reduced cutting forces
• 1.7717-inch (45 mm) long length of cut for extended reach applications
• Two-flute design provides maximum chip clearance during slot milling
• Right-hand cut and right-hand flute for standard CNC spindle compatibility
• Bright, uncoated finish suitable for use with or without cutting fluid

Compatibility

Designed for use in standard collets, shrink-fit holders, and milling chucks that accept a 0.4724-inch (12 mm) shank diameter. Part of the GUHRING Series 3358 long-reach solid carbide end mill line.

Installation Notes

Installation and tool changes should be performed by a qualified machinist with the machine in a fully powered-down and locked-out state per applicable lockout/tagout procedures. Ensure the tool holder and collet are clean and free of debris before securing the shank. Verify runout after installation using a dial indicator before beginning a cut. Do not exceed the recommended axial depth of cut for the tool diameter as stated in the applicable machining data sheet.
