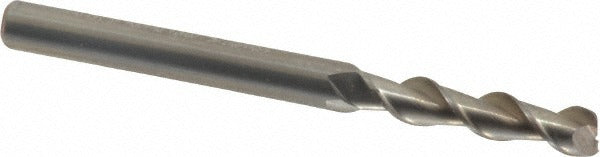

Guhring 9031740031700 Square End Mill 1/8 in 2 Flute Carbide

Product Description

The GUHRING 9031740031700 is a solid carbide square end mill designed for precision milling operations in metalworking and machining applications. This single-end tool features a 1/8 inch cutting diameter, a 7/16 inch length of cut, and a 1-1/2 inch overall length. With 2 spiral flutes and a 45-degree helix angle, it delivers efficient chip evacuation and smooth cutting action. The bright, uncoated finish suits a range of general-purpose milling tasks. It is center-cutting capable, allowing direct plunge entry into workpieces. Licensed machinists and tool-and-die professionals are the primary installers and operators of this tool.

This end mill is suited for slotting, profiling, and peripheral milling in materials classified under primary workpiece material code N, which covers non-ferrous metals and similar materials. The straight-cylindrical shank measures 1/8 inch in diameter and is compatible with standard collet and end mill holder setups. The 1/8 inch diameter makes this tool well-suited for fine detail work, narrow slot cutting, and tight-tolerance features on CNC machining centers and manual mills. It belongs to the GUHRING Series 3174, a line of solid carbide end mills built to consistent dimensional tolerances.

Key Features

• Solid carbide construction for rigidity and wear resistance in precision milling
• 45-degree helix angle spiral flutes for efficient chip removal and reduced cutting forces
• Center-cutting design allows direct plunge milling without a pre-drilled hole
• Right-hand cut and right-hand flute configuration for standard CNC and manual mill setups
• Mill diameter tolerance h10 and shank diameter tolerance h6 for accurate tool holding
• Bright uncoated finish suitable for general-purpose non-ferrous and similar material milling

Compatibility

Designed as an OEM-style solid carbide end mill in the GUHRING Series 3174, compatible with standard 1/8 inch collets and end mill holders on CNC machining centers and manual milling machines.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Always power down and lock out the machine spindle before changing tooling. Seat the shank fully in the collet or tool holder and torque the retention mechanism according to the holder manufacturer specifications. Inspect the cutting edges for chips or damage before use, and verify runout with a dial indicator when tight tolerances are required.
