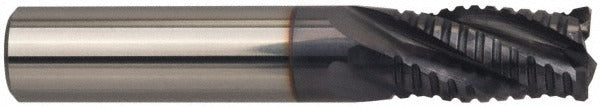

Guhring 9030970095200 Square End Mill 3/8 in 4 Flute Carbide

Product Description

The GUHRING 9030970095200 is a solid carbide square end mill designed for precision milling in demanding metal-cutting applications. With a 3/8-inch cutting diameter, 7/8-inch length of cut (LOC), and a 2-1/2-inch overall length (OAL), this tool delivers consistent material removal in tight tolerances. The four-flute, center-cutting geometry with a 30-degree helix angle supports efficient chip evacuation and smooth cutting action. The FIREX finish provides enhanced wear resistance and thermal protection, extending tool life across a range of ferrous and non-ferrous workpiece materials. Licensed machinists and CNC programmers working in job shop or production environments will find this end mill well-suited for slotting, profiling, and pocketing operations.

This end mill is configured as a single-end tool with a right-hand cut and right-hand flute direction. The 3/8-inch shank diameter matches common toolholding systems including collet chucks and end mill holders. The fine pitch and regular-length designation make it appropriate for standard vertical and horizontal milling center setups where reach and rigidity are balanced. It fits typical light- to medium-duty CNC milling applications in precision machining, tool-and-die, and general metalworking environments.

Key Features

• 3/8-inch cutting diameter with 7/8-inch length of cut for controlled depth engagement
• Four-flute, center-cutting design enables plunge entry and full-slot milling
• 30-degree helix angle promotes efficient chip flow and reduced cutting forces
• FIREX coating provides thermal and wear resistance for extended tool life
• Right-hand cut and right-hand flute direction suits standard CNC mill spindle rotation
• Solid carbide construction delivers rigidity and dimensional stability during high-speed cutting

Compatibility

Designed as an OEM-style solid carbide square end mill fitting standard 3/8-inch collet chucks and end mill holders used in CNC vertical machining centers and manual knee mills.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Ensure the spindle is fully stopped and the machine is in an e-stop or lockout state before tool changes. Seat the 3/8-inch shank fully into the toolholder and torque the retention mechanism according to the toolholder manufacturer specification. Verify runout with a dial indicator after clamping before beginning a cut.
