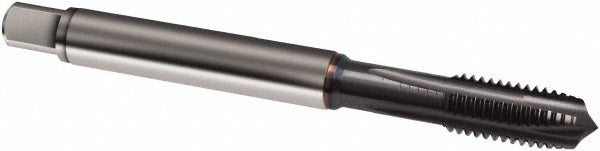

Guhring 9029010060000 Spiral Point Tap M6x1 Ticn

Product Description

The GUHRING 9029010060000 is a spiral point tap designed for through-hole threading in metric applications. It cuts an M6 x 1.00 thread profile with a right-hand direction and carries a 6H class of fit, making it suitable for close-tolerance work. The tap is manufactured from powdered metal and coated with TiCN for increased surface hardness and wear resistance. With 3 flutes and a plug chamfer, it is built for machine tapping in production environments. Overall length is 80 millimeters, and the shank diameter is 6 millimeters. Licensed machinists and tooling specialists are the primary users.

This tap is rated for special and super titanium alloy materials, making it appropriate for aerospace, medical, and precision machining operations where titanium and high-strength alloys are common workpiece materials. The spiral point design pushes chips forward ahead of the tap, keeping the flutes clear during through-hole passes. It is suited for CNC machining centers, drill presses, and tapping machines running through-hole cycles in production or job-shop settings. Coolant-through capability is not included in this model.

Key Features

• M6 x 1.00 metric thread profile with 6H class of fit for close-tolerance applications
• Powdered metal construction provides consistent grain structure and improved toughness over standard HSS
• TiCN coating increases surface hardness and reduces friction against titanium and hard alloys
• Plug chamfer eases entry and distributes cutting load across multiple leading threads
• Spiral point geometry pushes chips forward, ideal for through-hole threading
• Series 2901, D4/D5 thread limit for controlled oversize performance

Compatibility

Designed for through-hole threading in special and super titanium alloy workpieces; fits standard M6 tap holders and collet-style tooling compatible with a 6 millimeter shank diameter.

Installation Notes

This tap should be installed by a qualified machinist or tooling technician. Secure the tap in a properly sized collet or tap holder before use, and verify spindle alignment to avoid tap breakage. Always use a cutting fluid or coolant appropriate for titanium alloys. When setting up on CNC equipment, confirm feed rate and RPM match the manufacturer recommendations for the workpiece material before engaging the cycle.
