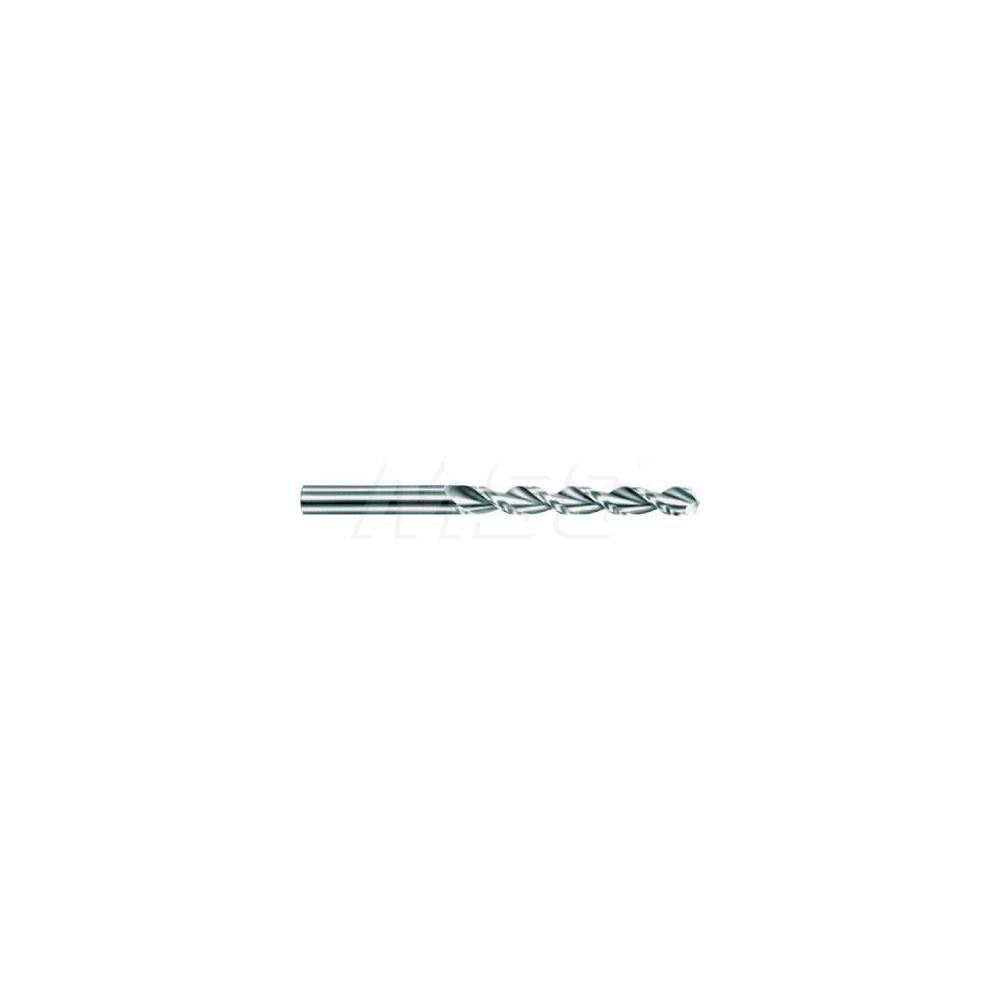

Guhring 9026010095200 Carbide Jobber Drill Bit 3/8 in

Product Description

The GUHRING 9026010095200 is a solid carbide jobber-length drill bit designed for precision hole-making in a wide range of materials. Built from submicron-grade carbide with a bright uncoated finish, it features a 130-degree point angle and a parabolic flute geometry that promotes efficient chip evacuation and reduced cutting forces. The 3/8 inch diameter bit has a 5.0 inch overall length and delivers a maximum drilling depth of 3.146 inches. Its web-thinned, tapered web construction reduces thrust requirements at entry. Machinists, tool-and-die technicians, and CNC operators rely on this bit for consistent, accurate results in production and job-shop environments.

This drill bit is engineered for use on aluminum and similar non-ferrous and ferrous workpiece materials, covering material codes K, N, and P. It is well suited to vertical machining centers, drill presses, and manual mills where a straight-cylindrical shank and standard point geometry are preferred. The 8xD flute-to-diameter ratio supports moderate-depth holes without packing chips, making it a practical choice for high-cycle production drilling as well as precision prototype work.

Key Features

• Submicron-grade solid carbide construction for rigidity and wear resistance
• 130-degree point angle for fast, centered starts with reduced walking
• Parabolic flute design promotes rapid chip evacuation in aluminum and non-ferrous materials
• Web-thinned tapered web reduces axial thrust and entry load
• Bright uncoated finish maintains tight dimensional tolerances without coating buildup
• Right-hand cut, straight-cylindrical shank compatible with standard drill chucks and collets
• ANSI-compliant Series 2601 construction

Compatibility

Designed as a standard jobber-length drill bit with a 3/8 inch straight-cylindrical shank, compatible with any drill chuck or collet holder accepting that shank diameter. Rated for workpiece material codes K, N, and P, including aluminum and similar materials.

Installation Notes

Installation and use should be performed by a qualified machinist or CNC operator. Secure the shank fully in the chuck or collet before operation and verify runout is within acceptable limits for the application. Ensure spindle speed and feed rate are set appropriately for the workpiece material and bit diameter before cutting. This bit does not support coolant-through delivery; apply external coolant or cutting fluid as required by the material and depth.
