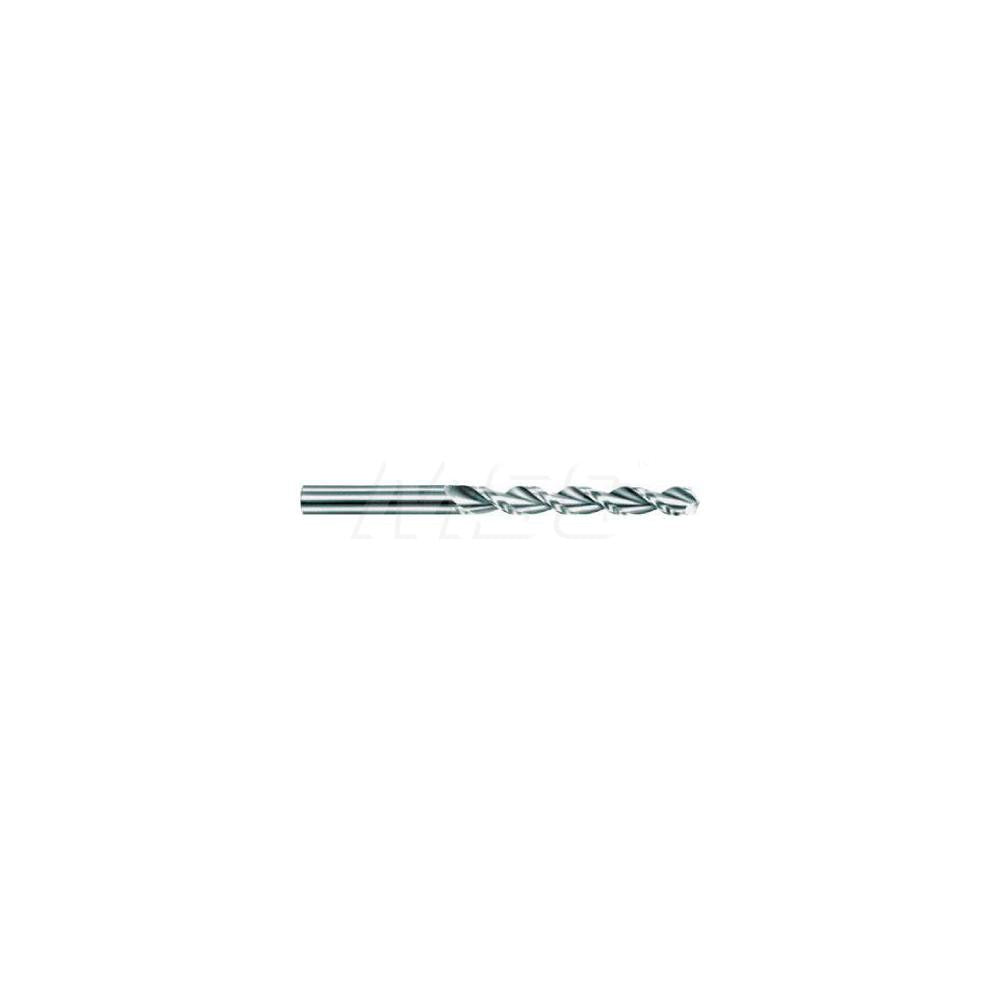

Guhring 9026010045000 Solid Carbide Jobber Drill Bit No. 16

Product Description

The GUHRING 9026010045000 is a solid carbide jobber-length drill bit in wire gauge size No. 16, with a decimal diameter of 0.1772 inches. It is built for precision drilling in aluminum and other non-ferrous and composite materials. The bit features a 130-degree split point angle, a parabolic flute design, and a web-thinned, tapered web configuration for efficient chip evacuation and reduced thrust. Overall length is 3.25 inches. The straight-cylindrical shank allows use in standard drill chucks and collet holders. This bit is suited for CNC machining centers, drill presses, and handheld power tools in production and maintenance environments. It is installed by machinists, toolroom technicians, and maintenance trades.

The 9026010045000 is designed for drilling aluminum as its primary workpiece material, with material codes K, N, and P indicating suitability for non-ferrous metals, non-metallic materials, and steel-group materials respectively. The Series 2601 designation identifies it within the GUHRING standard jobber drill line, built to ANSI specification. With a flute-to-diameter ratio of 8xD and a maximum drilling depth of 1.978 inches, it is appropriate for through-hole and moderate-depth drilling operations in both production runs and job-shop environments. Package quantity is one piece.

Key Features

• Solid carbide submicron-grade material for hardness and wear resistance in non-ferrous drilling
• 130-degree point angle reduces thrust and improves self-centering on entry
• Parabolic flute geometry promotes fast chip evacuation and reduces heat buildup
• Web-thinned tapered web lowers cutting force requirements
• Bright uncoated finish suitable for aluminum and non-ferrous applications where coating is unnecessary
• Straight-cylindrical shank compatible with standard chucks and ER collet systems

Compatibility

Built to ANSI standards as part of GUHRING Series 2601, this bit fits standard drill chucks and collet holders accepting a 0.1772-inch straight shank. Primary workpiece materials are aluminum and non-ferrous metals, with material codes K, N, and P. No coolant-through capability; intended for dry or externally cooled applications.

Installation Notes

Installation is performed by qualified machinists or maintenance technicians. Ensure the spindle is fully stopped and the machine is locked out before changing tooling. Seat the shank fully in the chuck or collet and verify runout before beginning a drilling cycle. Do not exceed the maximum drilling depth of 1.978 inches per pass without a peck-drilling cycle to clear chips.
