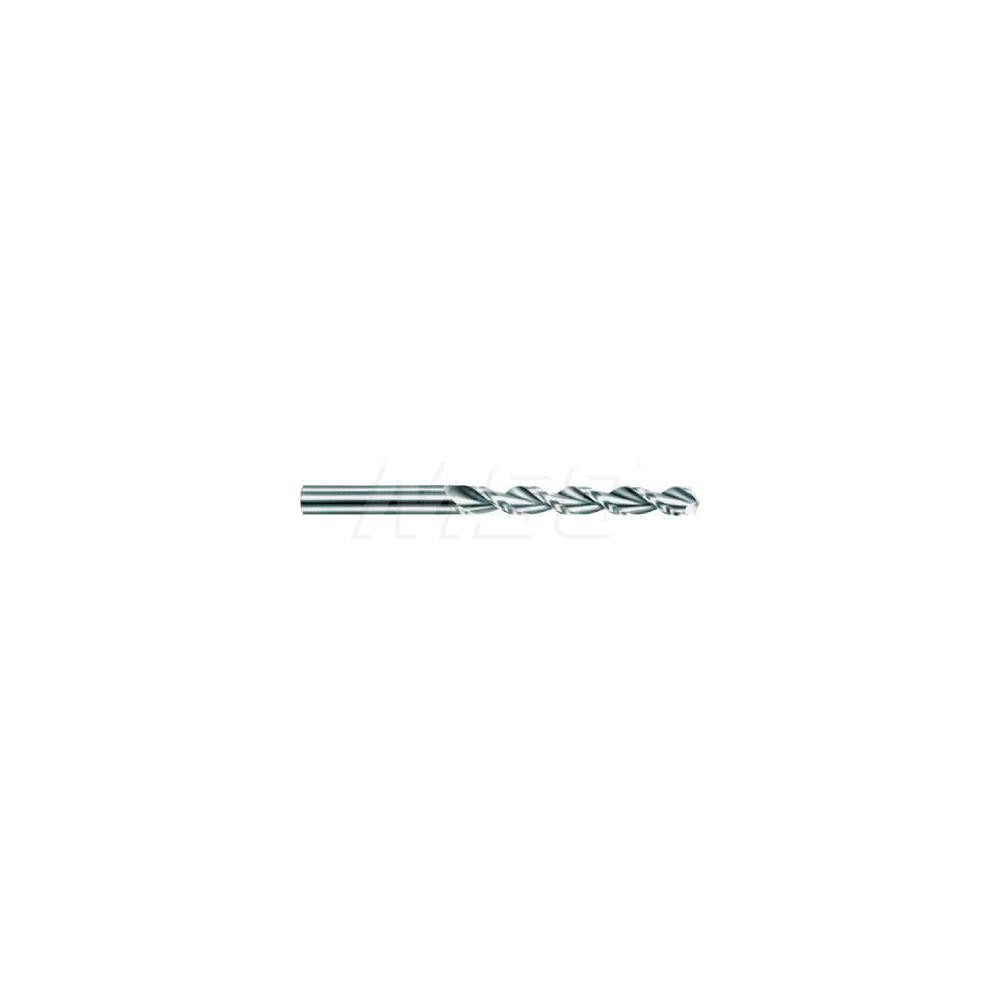

Guhring 9026010032600 Solid Carbide Jobber Drill Bit No 30

Product Description

The GUHRING 9026010032600 is a solid carbide jobber length drill bit in wire gauge size No. 30, with a decimal diameter of 0.1285 inches and a 130-degree point angle. Built from submicron-grade solid carbide, it delivers the hardness and wear resistance required for consistent performance in demanding production and maintenance drilling applications. The parabolic flute geometry promotes efficient chip evacuation and reduces heat buildup at the cutting zone. With an overall length of 2.75 inches and a straight-cylindrical shank diameter of 0.1283 inches, this bit fits standard drill chucks and collet holders without modification. It is sold individually and intended for use by machinists, maintenance technicians, and tool-and-die professionals.

This drill bit is optimized for drilling aluminum and other non-ferrous and general-purpose materials, as indicated by its primary workpiece material codes K, N, and P. The Series 2601 designation places it within a recognized Guhring jobber drill family suited for light to medium production drilling where tight tolerances and clean hole finishes are required. The bright uncoated finish keeps the carbide substrate exposed, which is well-suited for aluminum and softer non-ferrous materials where coatings can sometimes cause material adhesion. It conforms to ANSI standards and carries an 8xD flute-to-diameter ratio for the flute length.

Key Features

• Submicron solid carbide construction for extended tool life in abrasive and high-cycle drilling applications
• Parabolic flute design promotes fast chip evacuation and reduces cutting resistance
• 130-degree point angle suits aluminum and non-ferrous workpiece materials
• Web-thinned, tapered web configuration reduces thrust force at entry
• Bright uncoated finish prevents material pickup on aluminum and non-ferrous substrates
• ANSI-compliant straight-cylindrical shank fits standard chucks and collets

Compatibility

Designed as an OEM-style tooling replacement for applications requiring a wire gauge No. 30 jobber length drill bit in solid carbide. Primary workpiece material codes K, N, and P indicate suitability for aluminum, non-ferrous metals, and plastics. No specific machine model compatibility was stated in the product data.

Installation Notes

This bit should be installed by a qualified machinist or maintenance technician familiar with carbide tooling handling procedures. Carbide is brittle and susceptible to chipping from side loads or improper clamping; inspect the shank seating in the collet or chuck before operation. Ensure the spindle and workpiece are rigidly fixtured to prevent deflection. Coolant through is not supported on this bit, so apply external cutting fluid when drilling aluminum or other gummy materials to manage heat and extend tool life.
