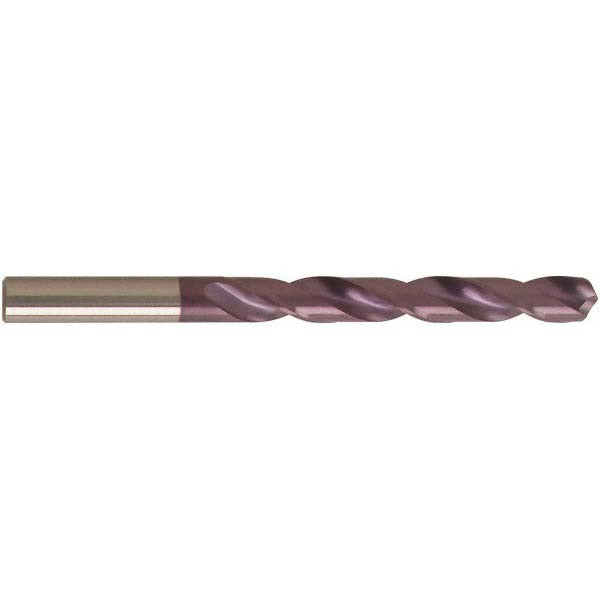

Guhring 9024640096000 Jobber Drill Bit 9.6mm Carbide

Product Description

The GUHRING 9024640096000 is a jobber-length drill bit engineered for precision drilling in aluminum and other non-ferrous materials. Built from solid carbide grade K40, it carries a FIREX coating that extends tool life and improves chip evacuation in high-speed applications. The bit features a 118-degree faceted point with web thinning for clean entry and reduced thrust force. With a 9.6 mm diameter and 133 mm overall length, it fits standard straight-cylindrical toolholders and is suited for CNC machining centers, drill presses, and manual production setups. Installation and operation are handled by machinists and tool-and-die professionals in light manufacturing and fabrication environments.

This drill bit is designed for general-purpose drilling with a primary focus on aluminum and non-ferrous workpiece materials (material code N). The Series 2464 designation follows DIN specification standards. A 5xD flute-to-diameter ratio and regular spiral flute geometry support consistent chip removal at standard cutting parameters. The right-hand cut and two-flute configuration are well suited for through-hole and blind-hole drilling in production and job-shop settings where dimensional accuracy and surface finish matter.

Key Features

• Solid carbide K40 grade construction for hardness and wear resistance in non-ferrous applications
• FIREX coating improves surface hardness and reduces built-up edge on aluminum
• 118-degree faceted drill point with web thinning reduces entry force and improves centering
• 9.6 mm diameter with diameter tolerance of -0.012 to 0.000 mm for tight-tolerance holes
• Maximum drilling depth of 72.60 mm (2.858 inches) with 87 mm flute length
• Right-hand cut, two-flute regular spiral for efficient chip evacuation

Compatibility

Designed for use in straight-cylindrical toolholders accepting a 9.6 mm shank diameter. Suitable for CNC machining centers, drill presses, and manual drilling equipment configured for jobber-length solid carbide tooling per DIN specification standards.

Installation Notes

Installation is performed by machinists using standard toolholder collets or drill chucks rated for the 9.6 mm straight-cylindrical shank. Ensure the toolholder is clean and free of debris before seating the bit to maintain runout within tolerance. Solid carbide tooling is brittle — avoid side-loading, interrupted cuts, or cross-drilling without appropriate setup support. Always verify spindle speed and feed rate against manufacturer cutting data for the workpiece material before operation.
