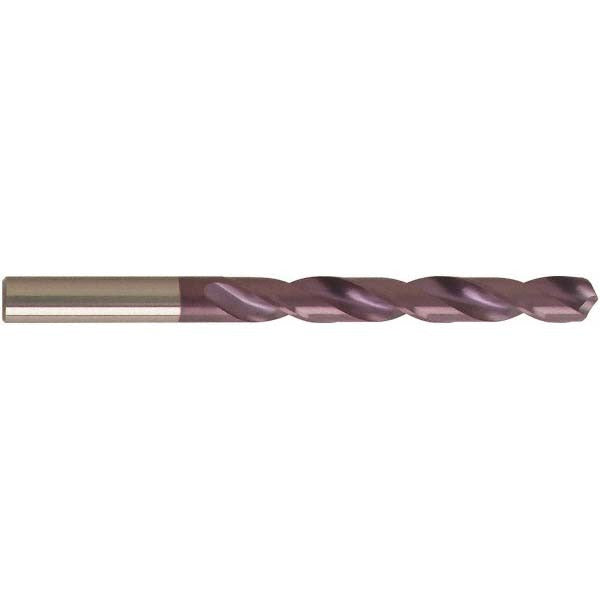

Guhring 9024640059500 Carbide Jobber Drill Bit 15/64

Product Description

The GUHRING 9024640059500 is a solid carbide jobber-length drill bit designed for precision drilling in non-ferrous and light alloy materials. Built to DIN specification in Series 2464, it carries a FIREX coating for improved wear resistance and tool life. The bit features a 118-degree faceted point angle with web thinning for clean entry, a two-flute regular spiral design for efficient chip evacuation, and a straight-cylindrical shank sized at 5.95 mm for secure chuck engagement. At 0.05 pounds, it is a compact, purpose-built rotary cutting tool suited for production and maintenance machining environments.

This drill bit is rated for general-purpose drilling with a primary workpiece material designation of N, indicating suitability for aluminum and similar non-ferrous materials. It is well suited for CNC machining centers, drill presses, and handheld drilling applications where tight diameter tolerances are required. The 5xD flute-to-diameter ratio and maximum drilling depth of 1.893 inches support consistent hole quality across common material thicknesses encountered in fabrication and assembly work.

Key Features

• Solid carbide construction in material grade K40 for rigidity and wear resistance
• FIREX coating extends tool life in aluminum and non-ferrous applications
• 118-degree faceted point with web thinning for accurate, self-centering entry
• Two-flute regular spiral design promotes efficient chip removal
• Diameter tolerance held to -0.012 to 0.000 mm for precise hole sizing
• DIN-specified Series 2464 geometry for consistent, repeatable performance

Compatibility

Designed as a general-purpose jobber-length drill bit for use with standard straight-shank drill chucks in CNC machining centers, drill presses, and portable drilling equipment compatible with a 5.95 mm straight-cylindrical shank.

Installation Notes

Installation and use should be performed by machinists or qualified trade personnel familiar with rotary cutting tools. Ensure the machine spindle and chuck are fully powered down before inserting or removing the bit. Verify chuck jaw capacity accommodates the 5.95 mm shank before securing. Follow applicable shop safety standards and manufacturer speed-and-feed recommendations for carbide tooling in the target workpiece material.
