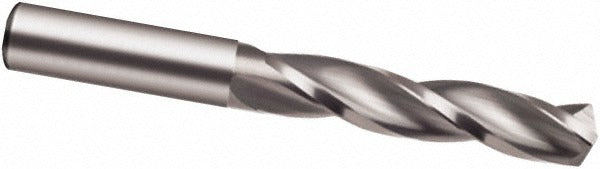

Guhring 9014520174600 Carbide Drill Bit 11/16 in 150 Deg

Product Description

The GUHRING 9014520174600 is a solid carbide jobber length drill bit designed for high-performance drilling in demanding applications. It carries an 11/16 inch (0.6874 inch decimal) diameter, a 150-degree faceted drill point, and a bright coating finish. The three-flute spiral design with a regular spiral type and web-thinned point improves chip evacuation and reduces entry thrust. This bit is built to DIN specification standards and is intended for use by machinists and skilled tradespeople working with metal, composites, or other materials that require a rigid, high-hardness cutting tool.

This drill bit is suited for production and job-shop environments where precision hole quality and tool longevity are priorities. The 5xD flute-to-diameter ratio provides extended reach for deeper hole applications while the jobber length format fits standard drill chucks and CNC spindles. Right-hand cut geometry makes it compatible with conventional drilling operations on vertical mills, drill presses, and CNC machining centers. It is packaged as a single unit and targets professional machinists and toolroom applications.

Key Features

• Solid carbide construction for rigidity and wear resistance in high-performance drilling
• 150-degree faceted drill point reduces thrust and improves centering accuracy
• Three-flute spiral design with web-thinned point promotes efficient chip removal
• Bright coating finish compatible with a wide range of workpiece materials
• 5xD flute-to-diameter ratio supports deeper hole applications
• Built to DIN specification with right-hand cut, regular spiral geometry

Compatibility

Designed as a high-performance OEM-grade solid carbide drill bit for use in standard drill chucks and CNC spindles accepting a 17.46 mm shank diameter, conforming to DIN specification requirements.

Installation Notes

Installation and use of this drill bit should be performed by a qualified machinist familiar with carbide tooling requirements. Ensure the spindle and chuck are clean and properly torqued before seating the shank to prevent runout. Solid carbide tooling is brittle and susceptible to chipping from lateral shock or improper feed rates — do not use in hand drills or unstable setups. Confirm workpiece fixturing and machine rigidity before beginning the cut.
