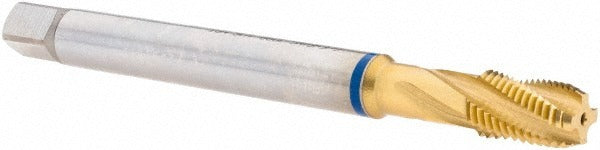

Guhring 9010880081900 Spiral Flute Pipe Tap 1/16-27 Npt

Product Description

The GUHRING 9010880081900 is a spiral flute pipe tap designed for cutting 1/16-27 NPT internal pipe threads in blind hole applications. Manufactured from cobalt high-speed steel with a titanium nitride (TiN) coating, this tap delivers improved wear resistance and heat dissipation during threading operations. The modified bottoming chamfer allows threads to be cut closer to the bottom of a blind hole than a standard taper tap. With 4 flutes and a 25-degree helix angle, it efficiently evacuates chips upward out of the hole, reducing the risk of chip packing. Overall length is 90 millimeters, shank diameter is 8 millimeters, and square size is 6.2 millimeters. Sold individually.

This tap is suited for threading blind holes in a range of materials including aluminum, gray cast iron, malleable iron, non-ferrous metals, spheroidal iron, and stainless steel. The spiral flute geometry makes it particularly effective where chip evacuation is critical, such as in deep or restricted blind hole setups. It is commonly used in machine shop, maintenance, and production environments where NPT pipe thread connections are required in fabricated or machined components.

Key Features

• 1/16-27 NPT thread form for standard pipe thread applications
• Cobalt construction provides elevated heat and wear resistance compared to standard HSS
• TiN coating reduces friction and extends tool life across varied materials
• 25-degree right-hand helix angle promotes upward chip evacuation in blind holes
• Modified bottoming chamfer threads closer to the bottom of blind holes than a taper tap
• 4-flute design balances cutting load and chip removal

Compatibility

Designed for use in CNC machining centers, drill presses, and tapping machines equipped to accept an 8-millimeter round shank with a 6.2-millimeter square drive. Suitable for cutting 1/16-27 NPT threads in aluminum, gray cast iron, malleable iron, non-ferrous metals, spheroidal iron, and stainless steel workpieces.

Installation Notes

Machine tapping is recommended; ensure the spindle speed and feed rate are appropriate for the workpiece material and tap size before starting. Secure the tap in a suitable tap holder or collet chuck that engages the square drive to prevent slippage under torque. Apply appropriate cutting fluid for the workpiece material to reduce heat buildup and extend tap life. Inspect the tap for wear or chipping before each use and replace at first sign of damage to avoid thread damage or tap breakage.
