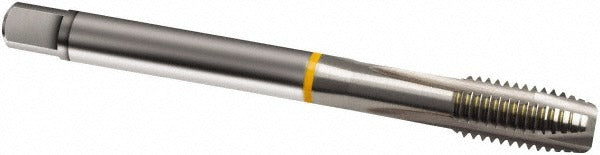

Guhring 9008270360070 Spiral Point Tap M36x1.50

Product Description

The GUHRING 9008270360070 is a spiral point tap designed for cutting internal metric fine threads in through-hole applications. It produces an M36x1.50 thread profile to a 6H class of fit, delivering the dimensional accuracy required in precision assembly and maintenance work. Manufactured from cobalt high-speed steel and left in a bright, uncoated finish, this tap is built to handle steel workpieces where toughness and edge retention matter. The four-flute, plug chamfer configuration drives chips forward through the hole, making it a reliable choice for production threading and field repair on larger fastener sizes. Overall length is 170 millimeters with a 28-millimeter shank diameter.

This tap is suited to through-hole threading operations in steel components across industrial maintenance, machine shops, and heavy equipment service environments. The plug chamfer provides a gradual lead-in of several threads, distributing cutting forces and reducing the risk of tap breakage at larger diameters. It is appropriate for use in manual tapping setups and CNC or machine tapping applications where a right-hand thread is required. Typical users include machinists, millwrights, and maintenance technicians working on metric fine-threaded assemblies in the M36 range.

Key Features

• M36x1.50 metric fine thread form to 6H class of fit for precision tolerance control
• Cobalt HSS construction provides heat and wear resistance when threading steel
• Four-flute spiral point design pushes chips ahead of the tap in through-hole work
• Plug chamfer distributes cutting load gradually for controlled thread entry
• Bright uncoated finish maintains dimensional integrity without coating buildup in the thread form
• Right-hand thread direction, D8/D9 thread limit, Series 827

Compatibility

Designed for through-hole threading of M36x1.50 metric fine threads in steel workpieces. Suitable for use with standard tap holders and collet chucks accepting a 28-millimeter shank diameter.

Installation Notes

This tap should be installed and operated by a qualified machinist or maintenance technician familiar with large-diameter tapping procedures. Secure the workpiece fully and use a rigid tap holder or machine tapping attachment to minimize runout at this diameter. Apply a suitable cutting fluid rated for steel to reduce heat buildup and extend tool life. Inspect the tap for wear or chipping before each use, as tap breakage at M36 can be costly and difficult to recover from.
