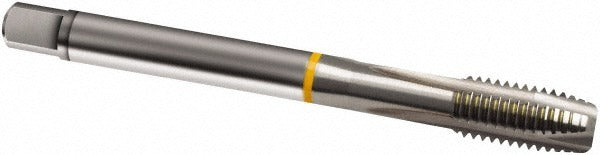

Guhring 9008270240070 Spiral Point Tap M24x1.5 Cobalt

Product Description

The GUHRING 9008270240070 is a cobalt spiral point tap designed for cutting M24 x 1.5 metric fine internal threads in through-hole applications. With a plug chamfer and a 6H class of fit, it produces accurate threads that meet tight dimensional tolerances required in precision assemblies. The 4-flute spiral point geometry pushes chips forward ahead of the tap, keeping the flutes clear and allowing consistent performance in through-hole work. The bright finish reduces friction during cutting. At 140 millimeters overall length with an 18-millimeter shank diameter, this tap is suited for use in machine tapping operations where rigidity and concentricity matter. It carries a D6/D7 thread limit designation. Machinists and tool-and-die professionals install this tap in production and maintenance environments.

This tap is rated for threading steel workpieces and is sized for M24 x 1.5 metric fine thread forms commonly found in automotive, heavy equipment, and industrial machinery components. The through-hole application requirement means the tap is not intended for blind-hole threading without modification to the setup. The plug chamfer style provides a moderate lead-in, making it appropriate for most standard through-hole machine tapping cycles. Series 827 is GUHRING's production-grade cobalt tap line, manufactured for high-volume and demanding applications where tool life and dimensional consistency are critical.

Key Features

• M24 x 1.5 metric fine thread form with 6H class of fit and D6/D7 thread limit
• 4-flute spiral point design pushes chips forward, suited for through-hole threading
• Cobalt construction provides heat and wear resistance when tapping steel
• Plug chamfer for standard machine tapping lead-in
• Bright finish reduces friction and galling during the threading operation
• Right-hand thread direction; 140 millimeters overall length with 18-millimeter shank

Compatibility

Designed for through-hole threading of steel workpieces requiring M24 x 1.5 metric fine threads. Confirm shank diameter and machine spindle compatibility before installation.

Installation Notes

This tap should be installed by a qualified machinist following standard machine tapping procedures. Ensure the workpiece is securely fixtured and the spindle is properly aligned before beginning the tapping cycle. Use an appropriate cutting fluid rated for tapping steel to extend tool life and protect thread quality. Inspect the tap for wear or chipping between uses and never force a worn tap through a partially threaded hole.
