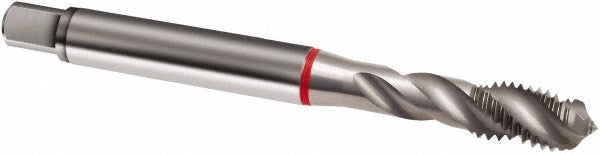

Guhring 9008110070000 Spiral Flute Tap M7 X 1.00 Cobalt

Product Description

The GUHRING 9008110070000 is a cobalt spiral flute tap designed for metric blind hole threading in demanding materials. Built to M7 x 1.00 specification with a 3-flute, right-hand spiral configuration and a 40-degree helix angle, it evacuates chips efficiently in deep blind holes. The modified bottoming chamfer allows threading close to the bottom of a hole. Sized to 6H class of fit with a D4/D5 thread limit, it produces threads within standard tolerance for general fastener applications. The bright, uncoated cobalt construction delivers hardness and heat resistance suited to difficult-to-machine steels.

This tap is intended for blind hole threading in heat treatable hardened steel, tool steel, and high tensile materials. It fits standard tap holders and machine tapping setups across CNC machining centers, drill presses, and manual tapping arms. The 80 mm overall length and 7.00 mm shank diameter fit common collet and quick-change tap holder systems used in production and job shop environments. Series 811 is a fast-flute design optimized for speed and chip clearance in tougher ferrous alloys.

Key Features

• M7 x 1.00 metric thread, right-hand flute and thread direction
• Cobalt construction for use in heat treatable hardened and tool steels
• 40-degree helix angle with fast flute style for efficient chip evacuation in blind holes
• Modified bottoming chamfer for threading close to hole bottom
• 6H class of fit, D4/D5 thread limit for standard metric tolerance
• Bright/uncoated finish — no coolant-through requirement

Compatibility

Designed for use in blind hole threading applications involving heat treatable hardened steel, tool steel, and high tensile materials. Compatible with standard tap holders sized for a 7.00 mm shank diameter and 5.50 mm square drive.

Installation Notes

Installation and use of this tap should be performed by a qualified machinist familiar with tapping parameters for cobalt tooling in hardened steels. Ensure the workpiece is securely fixtured and the spindle is properly aligned before engaging the tap. Use appropriate tapping fluid or cutting oil for the material being threaded; do not run this tap dry in hardened or high tensile steels. Replace the tap at the first sign of wear or torque increase to avoid tap breakage in blind holes.
