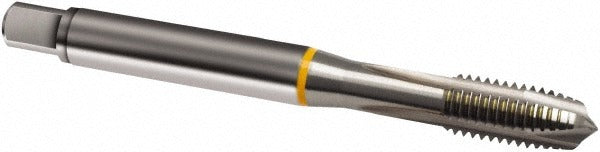

Guhring 9008030025000 Spiral Point Tap M2.5 X 0.45

Product Description

The GUHRING 9008030025000 is a spiral point tap designed for through-hole threading in metric applications. Built from cobalt high-speed steel with a bright finish, this tap cuts M2.5 x 0.45 threads to a 6H class of fit and D2/D3 thread limit. The three-flute, plug chamfer design pushes chips forward ahead of the cutting zone, making it well suited for production threading in through-hole configurations. With an overall length of 50 millimeters and a shank diameter of 2.80 millimeters, the tap fits standard collet and tap-holder tooling used in CNC and manual machining operations. Right-hand thread direction is standard for this configuration.

This tap is intended for through-hole threading in steel workpieces at the M2.5 x 0.45 pitch. The plug chamfer provides a gradual lead-in that distributes cutting forces across several threads, which helps maintain hole quality in production runs. It is appropriate for use in general machining, tool and die, and maintenance repair operations where small-diameter metric threads are required. The cobalt substrate offers improved heat and wear resistance compared to standard high-speed steel, supporting use at moderately elevated cutting speeds.

Key Features

• M2.5 x 0.45 metric thread form with 6H class of fit and D2/D3 thread limit
• Cobalt high-speed steel construction for enhanced heat and wear resistance
• 3-flute spiral point design pushes chips forward for clean through-hole threading
• Plug chamfer for gradual thread engagement and consistent thread quality
• Bright finish — no coating, suitable for use with a wide range of cutting fluids
• Right-hand thread direction; no coolant-through requirement

Compatibility

Designed for through-hole threading in steel. Part of the GUHRING Series 803 spiral point tap line for metric thread applications.

Installation Notes

Installation and use of this tap should be performed by a qualified machinist or tooling technician. Secure the tap in a properly sized collet, chuck, or tap holder rated for the shank diameter before operation. Always apply an appropriate cutting fluid compatible with the workpiece material to extend tool life and maintain thread quality. Inspect the tap for wear or damage before each use and replace if chipping or dulling is observed.
