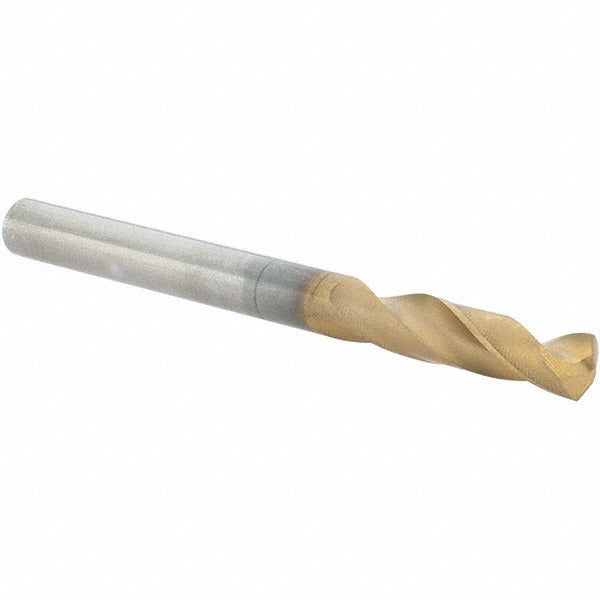

Guhring 9006590056000 Stub Drill 0.2205 in Cobalt Tin

Product Description

The GUHRING 9006590056000 is a stub-length (screw machine length) twist drill bit designed for high-productivity drilling in demanding materials. Built from M35 cobalt high-speed steel and finished with a TiN (titanium nitride) coating, this bit delivers elevated heat resistance and edge retention compared to standard HSS tooling. The 130-degree split point reduces thrust and self-centers on entry without a pilot hole. At 2.5984 inches overall length with a 1.1024-inch flute, the short body adds rigidity and minimizes deflection in CNC machining centers, turret lathes, and automatic screw machines. It is installed and changed out by machinists and CNC operators.

This drill bit is engineered for cutting titanium alloy and other tough workpiece materials where standard HSS bits underperform. The Series 659 stub-length design is suited for through-hole and blind-hole drilling on short-cut applications in production environments. The straight cylindrical shank fits standard drill chucks and collet holders without special tooling. The web-thinned, tapered web configuration reduces cutting forces at the tip and improves chip evacuation in tight-tolerance work.

Key Features

• M35 cobalt steel construction for heat resistance in hard and abrasive materials
• TiN coating reduces friction and extends tool life in titanium alloy and similar workpiece materials
• 130-degree split point self-centers and lowers entry thrust
• Web-thinned tapered web reduces cutting forces and aids chip flow
• Stub length (DIN 1897) adds rigidity and reduces deflection versus jobber-length bits
• Right-hand cut, two-flute spiral configuration for standard CNC and manual drilling setups

Compatibility

Conforms to DIN 1897 stub-length standard. Fits any drill chuck or straight-shank collet holder accepting a 5.60 mm (0.2205 inch) shank. Designed for use in CNC machining centers, turret lathes, and automatic screw machines requiring stub-length tooling in the 0.2000 to 0.2500 inch drill size range.

Installation Notes

This bit is installed by machinists or CNC operators; de-energize and lock out the machine before changing tooling. Seat the straight cylindrical shank fully in the chuck or collet and verify runout before starting a cut. Coolant-through is not supported on this bit, so ensure adequate external coolant or cutting fluid flow when drilling titanium alloy. Follow shop-specific speeds and feeds for cobalt tooling in the workpiece material being drilled.
