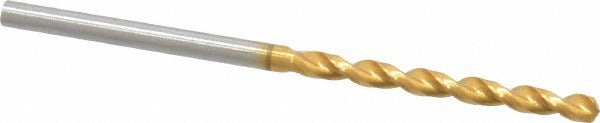

Guhring 9006520026000 Jobber Drill Bit 2.6mm Hss Tin

Product Description

The GUHRING 9006520026000 is a jobber-length twist drill bit designed for precise, high-performance drilling in metalworking and industrial applications. Built from high speed steel (HSS) with a titanium nitride (TiN) coating, this bit delivers extended tool life and reduced friction during cutting. It measures 2.6 mm (0.1024 inches) in diameter with an overall length of 2.25 inches and a parabolic flute length of 1.1875 inches. The 130-degree split point and web-thinned tip promote accurate hole entry with reduced thrust force. Manufactured to DIN 338 standards, it is rated as a high-performance grade bit suitable for demanding production environments.

This drill bit is primarily designed for drilling aluminum and similar non-ferrous and low-alloy materials, as indicated by workpiece material codes K, N, and P. It is well suited for general-purpose jobber-length work on CNC machining centers, drill presses, and hand-held power tools in light manufacturing, maintenance, and fabrication settings. The straight-cylindrical shank fits standard drill chucks without adapters. Series 652 from GUHRING is a recognized line for metric-sized HSS jobber drills used by machinists and tooling professionals across production and repair operations.

Key Features

• High speed steel construction with titanium nitride (TiN) coating for extended wear resistance
• 130-degree point angle with web-thinned, tapered web configuration for reduced entry force
• Parabolic flute geometry promotes efficient chip evacuation at a 5xD flute-to-diameter ratio
• Right-hand cut with straight-cylindrical shank diameter of 0.1024 inches
• Maximum drilling depth of 1.03 inches (26.10 mm)
• Manufactured to DIN 338 specification for consistent metric sizing and tolerances

Compatibility

Designed as a DIN 338-compliant jobber-length drill bit for use in standard drill chucks accepting a 0.1024-inch straight-cylindrical shank. Primary workpiece materials are aluminum and non-ferrous or low-alloy materials per material codes K, N, and P.

Installation Notes

Installation and use should be performed by a qualified machinist or tooling technician familiar with cutting tool safety practices. Ensure the drill chuck is fully tightened and the workpiece is securely clamped before operation. Inspect the cutting edges and TiN coating for wear or chipping before each use, as a damaged tip can cause deflection or inaccurate hole sizing. Do not exceed the rated maximum drilling depth of 1.03 inches without retracting to clear chips.
