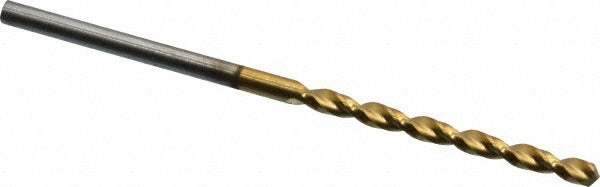

Guhring 9006520019300 Jobber Drill Bit Wire 48 Hss Tin

Product Description

The GUHRING 9006520019300 is a jobber length drill bit in wire gauge size 48, measuring 0.0760 inches in diameter. Built from high speed steel with a titanium nitride (TiN) coating, it is designed for precision drilling in production and maintenance environments. The bit features a 130-degree drill point angle with a standard point, a parabolic flute geometry, and web-thinned, tapered web construction. Overall length is 1-15/16 inches, with a 15/16-inch flute length. It is sold individually but requires a minimum order quantity of 10 units.

This drill bit is engineered for use in aluminum and other non-ferrous and ferrous materials, reflecting its primary workpiece material codes of K, N, and P. It is well suited for precision hole-making in light manufacturing, aerospace component work, and general metalworking applications where small-diameter accuracy is critical. The straight-cylindrical shank fits standard drill chucks and collet systems. The parabolic flute profile supports efficient chip evacuation, making it a practical choice for production drilling in aluminum and similar materials.

Key Features

• Wire size 48 diameter — 0.0760 inches — for small-diameter precision drilling
• Titanium nitride (TiN) coating extends tool life and reduces friction
• Parabolic flute design with web thinning promotes efficient chip removal
• 130-degree split-style point angle suited to aluminum and non-ferrous workpieces
• Straight-cylindrical shank compatible with standard drill chucks and collets
• Conforms to DIN 338 standard for jobber length drill geometry

Compatibility

Designed as an OEM-grade replacement or direct-use drill bit for any machine tool, drill press, or hand drill equipped with a chuck or collet accepting a 0.0760-inch straight-cylindrical shank. Optimized for aluminum (material code K and N) as well as general-purpose steel applications (material code P) per the supplier specification.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Ensure the machine spindle is fully stopped and the tool holder is clean and free of debris before seating the shank. Secure the bit firmly in the chuck or collet to the appropriate clamping specification for the tool holder in use. Do not exceed the maximum drilling depth of 0.831 inches for this bit size.
