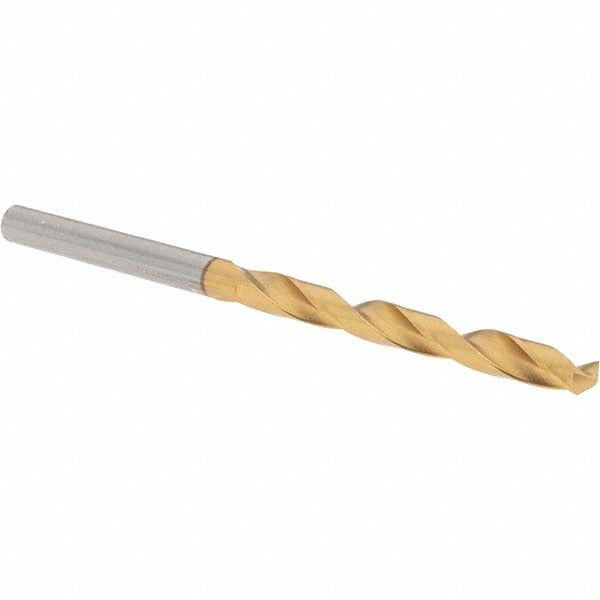

Guhring 9006510045000 Jobber Drill Bit Wire 16 Hss Tin

Product Description

The GUHRING 9006510045000 is a jobber-length twist drill bit designed for general-purpose metal drilling in production and maintenance environments. Manufactured from M2 high speed steel with a titanium nitride (TiN) coating, it carries a wire gauge size of 16 (0.1770 inch decimal) and delivers a 118-degree standard point angle with a web-thinned, tapered web configuration for easier penetration and reduced thrust. Overall length is 3.1496 inches and flute length is 1.8504 inches. The straight-cylindrical shank measures 0.1772 inch in diameter. Right-hand spiral flutes with a regular helix and a 5xD flute-to-diameter ratio handle chip evacuation efficiently. This bit is sold individually and weighs 0.3 pounds.

This drill bit is built for use on cast iron and steel workpieces in typical machining and fabrication applications. Conforming to DIN 338, it fits standard drill chucks used in hand-held drills, drill presses, and CNC drilling operations. The TiN coating extends tool life in repetitive drilling cycles on ferrous materials. It is suited for maintenance technicians, machinists, pipefitters, and metalworkers who need a reliable general-purpose bit for everyday metal drilling tasks without specialty tooling requirements.

Key Features

• M2 high speed steel construction with titanium nitride (TiN) coating for extended tool life on ferrous materials
• 118-degree standard point angle with web-thinned, tapered web for reduced entry thrust
• Right-hand cut, regular spiral flutes with 5xD flute-to-diameter ratio for consistent chip evacuation
• Straight-cylindrical shank at 0.1772 inch diameter fits standard drill chucks without adapters
• Meets DIN 338 specification for jobber-length twist drills
• Diameter tolerance held to +0.000 to -0.018 mm for accurate hole sizing

Compatibility

Designed as an OEM-style general-purpose jobber drill bit conforming to DIN 338, suitable for use in standard drill chucks accepting straight-cylindrical shanks in the 0.1500 to 0.2000 inch diameter range.

Installation Notes

Installation is performed by machinists or maintenance technicians using standard drill chuck equipment. Secure the straight-cylindrical shank fully in the chuck and verify runout before drilling. Always power down or de-energize the drilling machine and engage all guards before changing tooling. Do not exceed the recommended drilling depth of 1.8504 inches as indicated by the flute length; deeper holes require pecking cycles or extended-length tooling.
