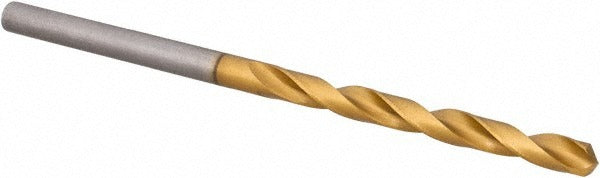

Guhring 9006510032600 Jobber Drill Bit Wire 30 Hss Tin

Product Description

The GUHRING 9006510032600 is a jobber length twist drill bit in wire gauge size 30, with a decimal inch diameter of 0.1285 inches. Built from M2 high speed steel and finished with a titanium nitride (TiN) coating, this bit is designed for general-purpose drilling in cast iron and steel. It features a standard 118-degree split point with web thinning for easier entry, a regular spiral flute configuration, and a straight-cylindrical shank. Overall length is 2.559 inches with a flute length of 1.417 inches. Licensed machinists, tool-room technicians, and maintenance trades use this bit for precision drilling work in ferrous materials.

This drill bit suits general-purpose metal drilling applications in both production and maintenance environments. The TiN coating reduces friction and extends tool life compared to uncoated HSS. Web thinning at the tip lowers thrust requirements, making it practical for hand-fed drill presses and CNC setups alike. The straight-cylindrical shank seats in standard 3-jaw chucks without modification. It conforms to DIN 338 standards, placing it in the internationally recognized jobber length class for consistent fitment across compatible toolholding systems.

Key Features

• M2 high speed steel construction for durability in ferrous metal drilling
• Titanium nitride (TiN) coating reduces friction and improves tool life
• 118-degree standard point angle with web thinning for reduced entry thrust
• Regular spiral flute with 2 flutes and tapered web configuration
• Conforms to DIN 338 jobber length standard
• Straight-cylindrical shank compatible with standard drill chucks

Compatibility

Designed as a DIN 338 jobber length drill bit for use in standard 3-jaw drill chucks, drill presses, and CNC machining centers that accept straight-cylindrical shanks. Rated for drilling cast iron and steel workpieces.

Installation Notes

Installation and use should be performed by qualified machinists or maintenance technicians familiar with drill press or CNC operation. Secure the shank fully in the chuck before operation and verify runout is within acceptable limits. Always power down and lock out the machine before changing bits. Do not exceed the recommended feed and speed ratings for M2 HSS in the workpiece material being drilled.
