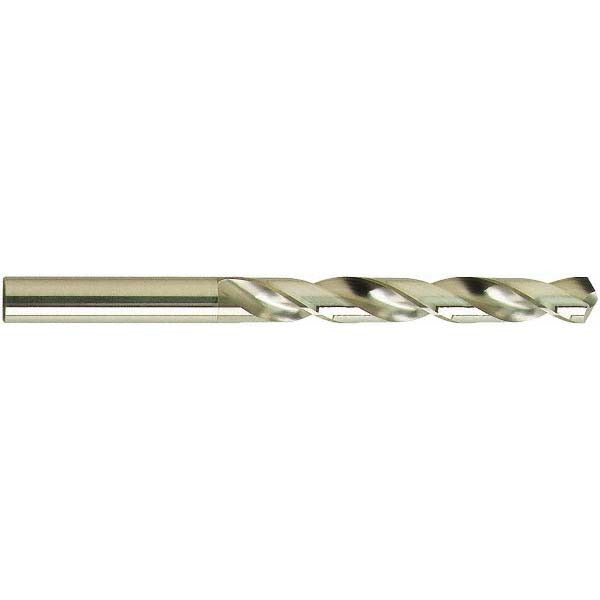

Guhring 9002050094500 Jobber Drill 9.45mm Hss

Product Description

The GUHRING 9002050094500 is a high speed steel jobber-length drill bit engineered for general-purpose drilling in cast iron and steel. Ground to DIN 338 standards and finished with an oxide coating, this Series 205 drill delivers consistent performance in production and maintenance environments. The 118-degree standard point angle suits flat-start and pilot applications across a wide range of ferrous materials. At 9.45 mm in diameter with a 4.92-inch overall length, it fits standard drill chucks without adapters. The web-thinned, tapered web design reduces thrust and improves chip evacuation. Licensed HVAC, plumbing, electrical, and mechanical contractors reach for this bit when drilling equipment enclosures, hangers, and structural steel.

This drill bit is appropriate for residential and commercial trade applications wherever steel or cast iron is encountered. Typical uses include drilling equipment pads, conduit knockouts in steel enclosures, pipe hanger strut, and sheet metal fabrication. The straight-cylindrical shank seats securely in keyless or keyed chucks on standard corded drills and drill presses. The 2-flute spiral geometry channels chips out of the hole efficiently during through-drilling operations. It is sold individually and is suited to both one-off service calls and bench-level shop work.

Key Features

• DIN 338 standard — ensures dimensional conformance and consistent point geometry
• M2 high speed steel construction — maintains cutting edge hardness under heat generated in steel and cast iron
• Oxide surface finish — provides a baseline level of lubricity and corrosion resistance during storage and use
• Web-thinned tapered web — reduces axial thrust at drill entry for cleaner starts
• 118-degree standard point — compatible with a wide range of drill press and handheld drill setups without special fixtures
• Straight-cylindrical shank at 9.45 mm — seats directly in standard 3-jaw chucks without reduction sleeves

Compatibility

Designed as a general-purpose replacement or consumable jobber drill for trade and industrial use in ferrous materials including cast iron and steel, conforming to DIN 338 for Series 205 straight-shank jobber drills in the 9.00 mm to 10.00 mm diameter range.

Installation Notes

Install in a keyed or keyless drill chuck rated for the shank diameter and tighten securely before operation. Always power down and de-energize any equipment being drilled before starting. Use cutting fluid or cutting oil when drilling steel to extend bit life and reduce heat buildup. Wear appropriate eye protection and secure workpieces per applicable OSHA and site safety requirements.
