Guhring 9002050068000 Jobber Drill 6.80mm Hss

Product Description

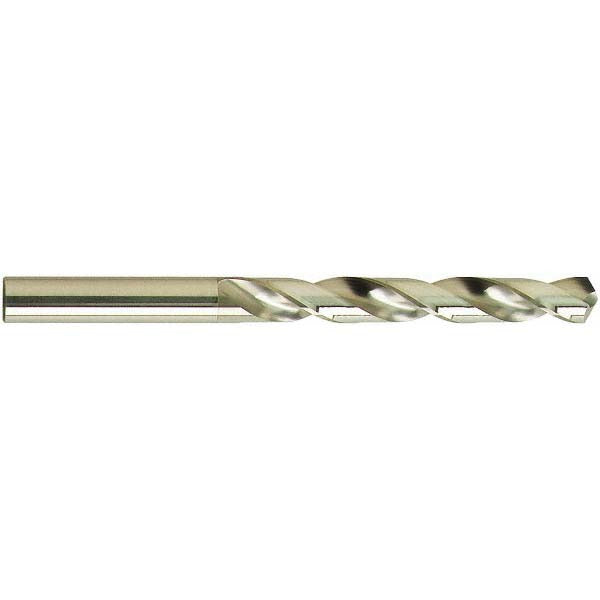

The GUHRING 9002050068000 is a jobber-length twist drill bit designed for general-purpose drilling in metal, wood, and plastic applications. Built from M2 high speed steel with an oxide coating, it provides solid wear resistance in production and maintenance drilling environments. The bit features a 118-degree standard point angle with web thinning for improved penetration and reduced thrust force at the start of a cut. At 109 mm (approximately 4.29 inches) overall length and 6.80 mm (approximately 0.268 inches) in diameter, it fits the standard jobber length profile and is well-suited for hand-held drills, drill presses, and CNC machining centers.

This drill bit is used across metal fabrication shops, maintenance facilities, and general industrial settings. The right-hand spiral flute with regular helix geometry clears chips efficiently during through-hole and blind-hole drilling. It conforms to DIN 338 specification, which defines jobber drill geometry and dimensional tolerances. Machinists, toolmakers, and maintenance technicians are the typical users of this bit. It is sold individually and is suitable for low-to-medium volume drilling operations where a reliable, off-the-shelf HSS bit is required.

Key Features

• M2 high speed steel construction for durability in metal drilling applications
• Oxide coating provides corrosion resistance and moderate lubricity
• 118-degree standard point angle with web-thinned tip reduces entry thrust
• Right-hand spiral flute with regular helix for efficient chip evacuation
• Straight-cylindrical shank compatible with standard drill chucks
• Conforms to DIN 338 specification for consistent dimensional accuracy

Compatibility

Designed as a DIN 338 jobber drill bit with a straight-cylindrical shank, compatible with standard three-jaw drill chucks on hand-held drills, drill presses, and machining centers that accept shanks in the 6.00 to 7.00 mm diameter range.

Installation Notes

Installation and use should be performed by qualified machinists or maintenance technicians familiar with rotating cutting tools. Secure the shank fully in the drill chuck before operation and verify the chuck is properly tightened. Power down and de-energize any machine before changing drill bits. Do not exceed the recommended speed and feed parameters for the workpiece material being drilled.
