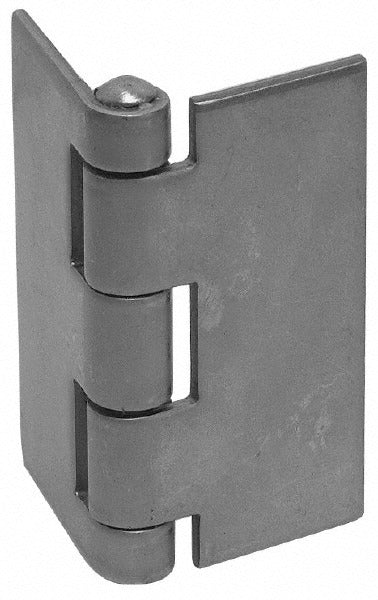

Guden 6000150512 Blank Butt Hinge 1.5in Steel

Product Description

The GUDEN 6000150512 is a blank butt hinge manufactured from steel with a plain finish. It measures 1.5 inches in overall width and 1.5 inches in height, with a leaf thickness of 0.05 inches. Each leaf is 0.75 inches wide and 1.5 inches tall, and the pin diameter is 0.12 inches. Square corners give it a clean, flush fit against flat mating surfaces. This hinge is suited for light-duty door, panel, and enclosure applications where a compact, undrilled hinge blank is required prior to custom drilling or punching by the installer or fabricator.

Blank butt hinges are commonly used in light industrial, electrical enclosure, cabinet, and OEM fabrication applications. Because the hinge arrives undrilled, it allows fabricators and technicians to locate and drill fastener holes to exact specifications for the application at hand. The compact 1.5-inch by 1.5-inch footprint fits small doors and access panels in equipment cabinets, junction boxes, and similar assemblies. Single-unit packaging makes it practical for repair and replacement work as well as prototype builds.

Key Features

• Undrilled blank leaf design allows custom hole placement for precise fitment
• Steel construction provides durability for light-duty industrial and enclosure use
• Square corners for flush mounting against flat door and frame surfaces
• Compact 1.5 inches x 1.5 inches overall footprint suits small panel and cabinet doors
• 0.12-inch pin diameter consistent with standard light-duty butt hinge specifications
• Plain finish accepts paint, coating, or plating after fabrication if required

Compatibility

Designed as an OEM-style blank replacement or fabrication-ready butt hinge for small doors, access panels, and enclosures requiring a 1.5-inch by 1.5-inch hinge with 0.75-inch leaf width and square corners.

Installation Notes

Installation is typically performed by a fabricator, millwright, or maintenance technician. Drill and countersink fastener holes before mounting to ensure accurate alignment. Power down or de-energize any enclosure or panel before servicing hinges on electrical equipment. Follow applicable local codes and manufacturer guidelines for fastener type and size based on the door material and load requirements.
