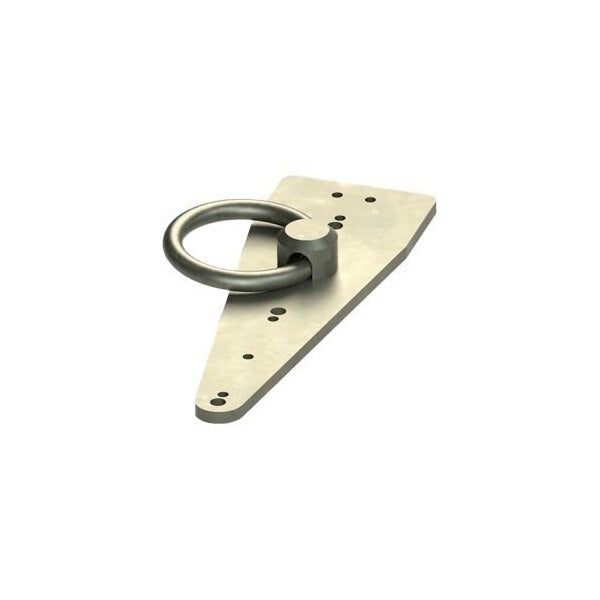

Guardian Fall Protection 484 Bull Ring Anchor

Product Description

The GUARDIAN FALL PROTECTION 484 Bull Ring Anchor is a roof-mounted fall protection anchor designed for personal fall arrest, restraint, and work positioning applications. It accommodates a worker weight capacity range of 130 to 420 pounds, including all clothing, tools, and equipment carried on the job. Installation requires a substrate of roof truss or support beam that is a minimum of 3 inches thick CDX plywood or better. Licensed roofing and construction safety professionals install this anchor as part of a compliant fall protection system on residential and light commercial structures.

This anchor is suited for use in residential roofing, new construction framing, and re-roofing applications where a temporary or permanent overhead anchorage point is required. It is compatible with standard personal fall arrest system (PFAS) components including lanyards, self-retracting lifelines, and harnesses that meet applicable OSHA and ANSI Z359 requirements. The anchor is fastened directly to roof truss or structural beam substrate using specified hardware included or sourced to spec.

Key Features

• Supports worker weight capacity of 130 to 420 pounds including tools and equipment
• Suitable for personal fall arrest, restraint, and work positioning applications
• Requires minimum 3 inch thick CDX or better roof truss or support beam substrate
• Compatible with six 16D 3-inch 8-gauge nails or three 1/4-inch by 3-inch zinc-plated steel hex head lag screws for fastening
• Fasteners must be fully embedded in substrate for rated performance

Compatibility

Designed for use with standard personal fall arrest system components including harnesses, lanyards, and self-retracting lifelines. Substrate must be a roof truss or structural support beam of minimum 3 inches thick CDX plywood or better grade.

Installation Notes

Installation must be performed by a qualified person familiar with OSHA 29 CFR 1926 Subpart M fall protection requirements and applicable ANSI Z359 standards. Before installing, verify the substrate meets the minimum thickness and structural grade requirements. Use either six 16D 3-inch 8-gauge nails or three 1/4-inch by 3-inch zinc-plated steel hex head lag screws, ensuring all fasteners are fully embedded in the substrate. Do not install on sheathing, decking, or any substrate that does not meet the minimum structural specification stated by the manufacturer.

Technical Specifications

• Worker Weight Capacity: 130 to 420 pounds
• Minimum Substrate Thickness: 3 inches CDX or better
• Fastener Option A: Six 16D 3-inch 8-gauge nails, fully embedded
• Fastener Option B: Three 1/4-inch by 3-inch zinc-plated steel hex head lag screws, fully embedded
• Applications: Personal fall arrest, restraint, work positioning
• Country of Origin: China

Standard Information

• Brand: GUARDIAN FALL PROTECTION
• Manufacturer Part Number: 484
