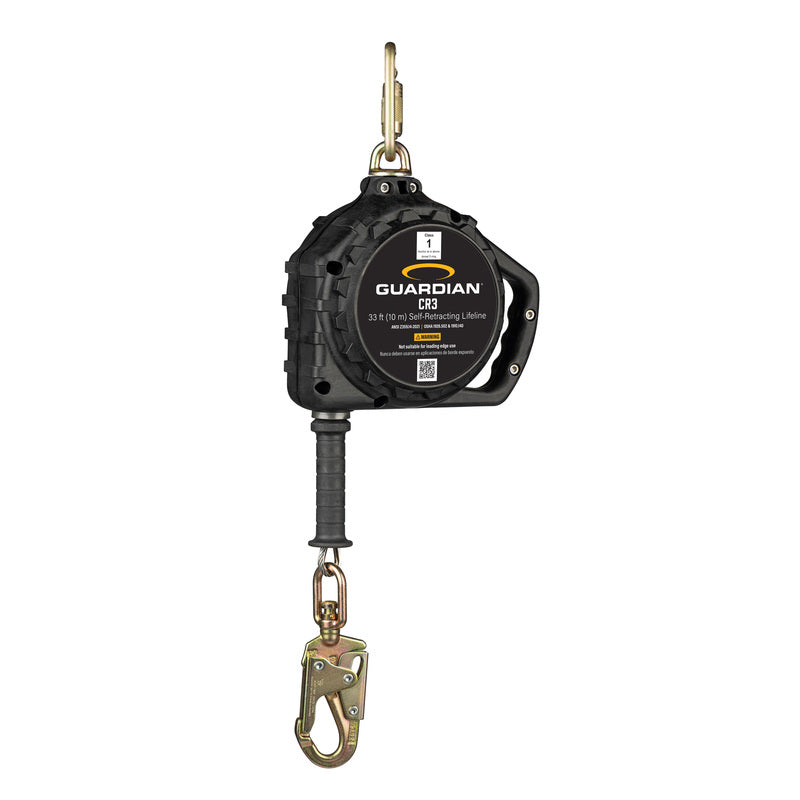

Guardian Fall Protection 4200220 CR3 Self-Retracting Lifeline 33 ft

Product Description

Guardian Fall Protection 4200220 is the CR3 Self-Retracting Lifeline, a Class 1 SRL with a 33 ft galvanized cable designed for fall arrest when connected to an overhead anchor point. The unit features a swivel top connection to reduce lifeline snagging, a fall-indicating snap hook to indicate exposure to excessive force, a digitally enabled QR code on the housing for manuals and specifications, an ergonomic carrying handle, and an included carabiner. The housing measures 14 in by 5 in and the unit weighs 16.2 lb (7.35 kg).

• 33 ft galvanized steel cable self-retracting lifeline for fall arrest (Class 1 SRL).
• Swivel top connection and fall-indicating swivel snap hook to reduce snagging and show impact exposure.
• Digitally enabled QR code on housing, ergonomic carrying handle, and included carabiner.

Product Highlights

Class 1 SRL with 33 ft galvanized cable, swivel top, fall-indicating snap hook, QR-code enabled housing, compact 14 in x 5 in design.

Product Information

Standard Information

• Brand: GUARDIAN FALL PROTECTION
• Manufacturer Part Number: 4200220

Technical Specifications

• Brand: GUARDIAN FALL PROTECTION
• MPN: 4200220
• Model: CR3 Self-Retracting Lifeline
• Lifeline Length: 33 ft
• Lifeline Material: Galvanized steel cable
• Cable Diameter: 3/16 in
• Class: Class 1 SRL
• Intended Use: Fall arrest (connect to overhead anchor point)
• Top Connection: Swivel top (360-degree)
• Hook Type: Fall-indicating swivel snap hook (steel)
• Included Hardware: Carabiner
• Legs: Single-leg
• Product Weight: 16.2 lb / 7.35 kg
• Dimensions: 14 in (length) x 5 in (height); third dimension (thickness/depth) not specified
• Housing Material: Thermoplastic
• Compliance: ANSI Z359.14-2021; OSHA 1910.140; OSHA 1926.502
• User Weight Range (ANSI): 130-310 lb (including tools and equipment)
• User Weight Range (OSHA): 100-420 lb (including tools and equipment)
• Part Number: 4200220
