Guardian Fall Protection 3505 Fixed Roof Bracket 6 in 5-pack

Product Description

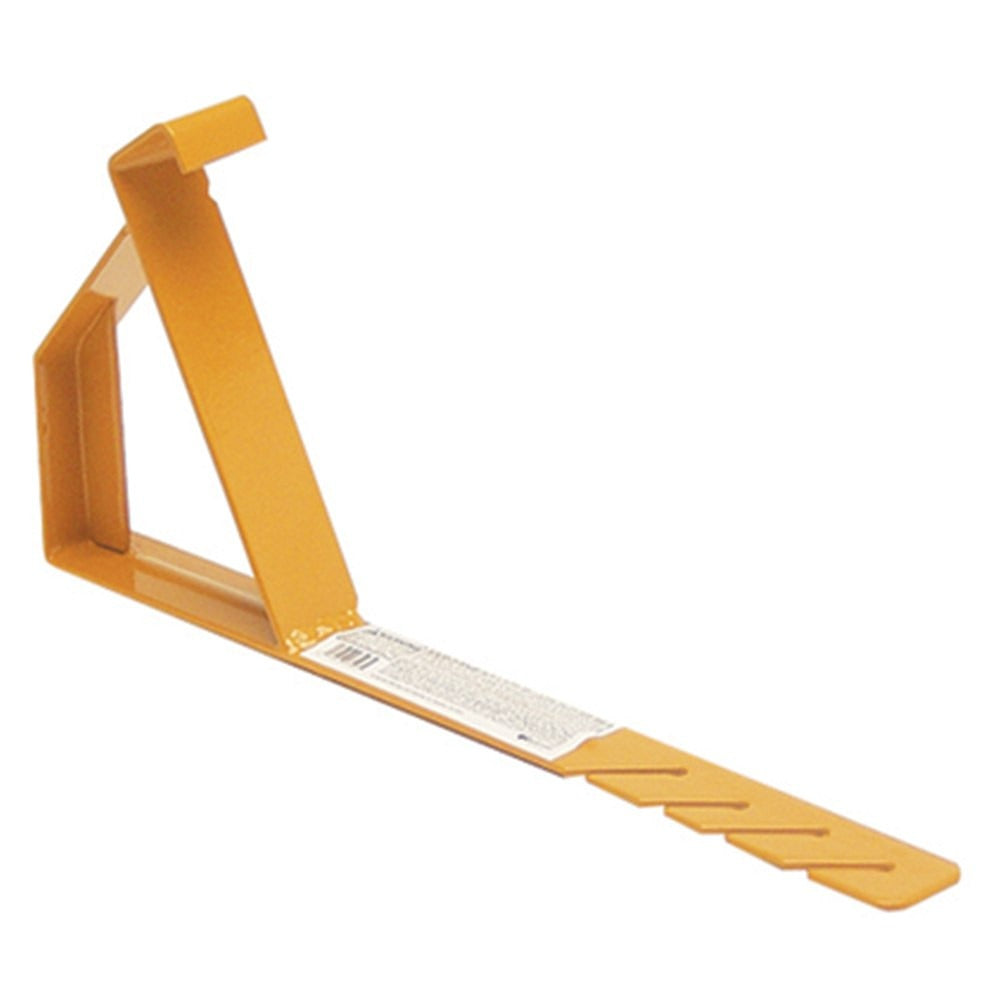

The GUARDIAN FALL PROTECTION 3505 Pro Line Fixed Roof Bracket is a steel staging bracket welded at a fixed 90-degree angle with a 6-inch projection. Designed for slide guard and staging applications where a constant angle is required, this bracket is built to handle repeated heavy use on residential and light commercial roofing jobs. It is the fixed-angle counterpart to the adjustable 2500 bracket. Sold as a 5-pack, it provides enough units to set up a standard staging run in a single purchase. Roofing contractors and construction crews are the primary installers.

This bracket is intended for rooftop staging and slide guard work on pitched roofs. The fixed 90-degree weld eliminates any field adjustment, making it well suited for job sites where a consistent roof pitch is known in advance and speed of setup is a priority. The 5-pack quantity supports a complete staging run without the need to source additional units separately. Important: the 3505 is staging equipment. Workers positioned above the staging still require a complete personal fall arrest system in compliance with OSHA 1926.501. This bracket does not function as a fall arrest anchor point on its own.

Key Features

• Fixed 90-degree weld angle eliminates field adjustment for consistent setup
• 6-inch projection accommodates standard staging planks
• Steel construction rated for demanding repetitive use
• 5-pack quantity supports a full staging run in one order
• Designed as a direct fixed-angle alternative to the adjustable 2500 bracket

Compatibility

Designed for use in standard rooftop slide guard and staging configurations on pitched roofs. Serves as the fixed-angle counterpart to the Guardian 2500 adjustable roof bracket.

Installation Notes

Roof brackets are installed by qualified roofing contractors and construction workers in accordance with applicable OSHA standards, including 1926.502. Secure each bracket to the roof structure using appropriate nails or fasteners rated for the load before placing staging planks. Workers above the staging level must be equipped with a complete personal fall arrest system per OSHA 1926.501 at all times. Never use a roof bracket as a standalone fall arrest anchor.

Technical Specifications

• Projection: 6 inches
• Bracket Angle: 90 degrees (fixed)
• Material: Steel
• Quantity: 5-Pack

Standard Information

• Brand: GUARDIAN FALL PROTECTION
• Manufacturer Part Number: 3505
