Guardian Fall Protection 1400204 CR5 Double Leg Self Retracting Web Lifeline 6 ft

Product Description

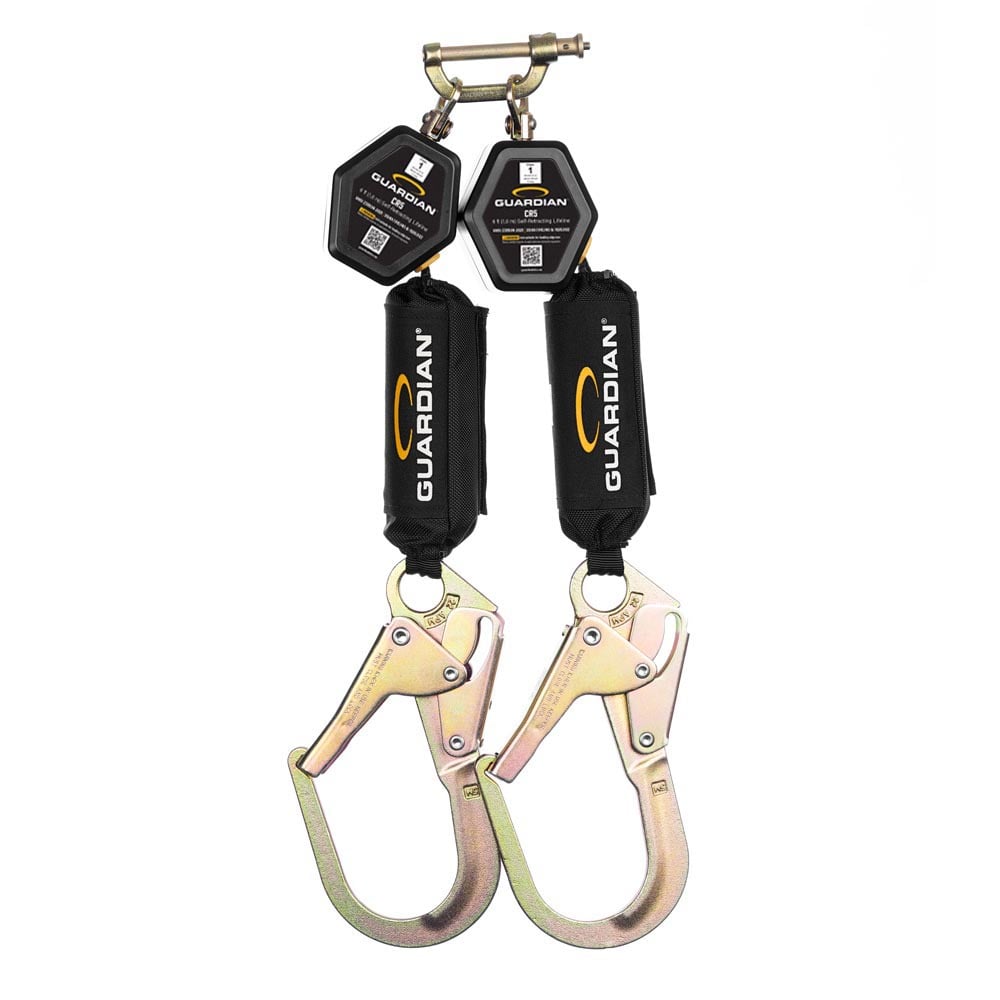

Guardian Fall Protection 1400204 is a CR5 double-leg self-retracting web lifeline kit that includes two 6-foot high-strength Vectran web retractables, a dual-lock harness connecting bracket, and a self-closing carabiner. The unit uses a centrifugal brake that locks within inches to minimize free-fall distance and swivel tops to reduce webbing twist. The double-leg configuration provides continuous tie-off during movement between anchor points and is rated for combined weight up to 420 lbs.

• Double-leg CR5 SRL with two 6 ft high-strength Vectran web retractables for continuous tie-off
• Centrifugal brake that locks within inches, swivel top connection to reduce twist, and steel rebar hooks for large anchor points
• Includes dual-lock twist-release harness connecting bracket and self-closing carabiner; rated to 420 lbs and Class 1 for overhead anchorages

Product Highlights

Class 1 CR5 dual-web SRL, 6 ft Vectran webbing, centrifugal braking, swivel top, steel rebar hooks, 420 lb rated capacity, ANSI Z359.14-2021 and OSHA compliant

Product Information

Standard Information

• Brand: GUARDIAN FALL PROTECTION
• Manufacturer Part Number: 1400204
• Country of Origin: United States

Technical Specifications

• Brand: Guardian Fall Protection
• Manufacturer Part Number: 1400204
• Model: CR5
• Product Type: Double leg self-retracting web lifeline kit
• Webbing Length: 6 ft (72 inches)
• Webbing Material: High-strength Vectran
• Lanyard Configuration: Double leg (dual webbing)
• Includes: Two CR5 retractables, dual-lock twist-release harness connecting bracket, self-closing carabiner
• Connector Type: Steel rebar hooks (for large anchor points)
• Rated Capacity: Combined weight up to 420 lbs
• Class: Class 1 (for overhead anchorages; must arrest fall within 42 inches)
• Standards: ANSI Z359.14-2021; OSHA 1910.140; OSHA 1926.502
• Weight: 7.75 lbs
• Braking Mechanism: Centrifugal brake (locks within inches)
• Housing Material: Impact-modified thermoplastic
• Swivel Connection: Swivel top connection to reduce webbing twist (360 degrees)
• Reinforcements: Reinforced webbing guide
• Intended Use: Fall arrest and travel restraint applications
• Additional Features: Guardian shock pack cover; digitally enabled QR code labels; integrated fall clearance charts
