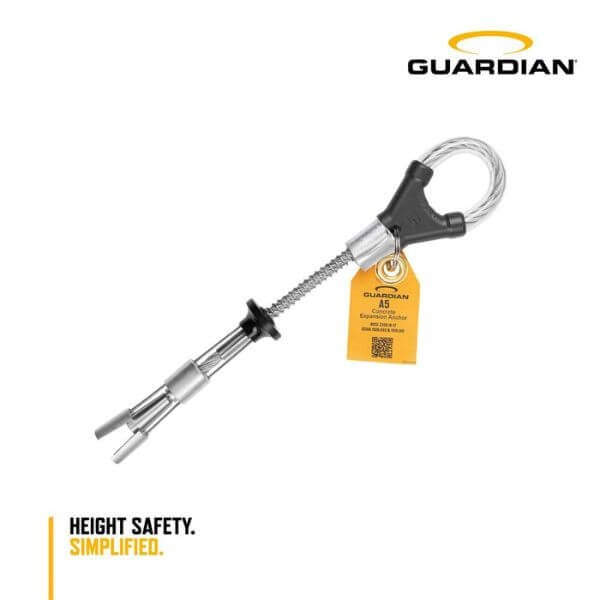

Guardian Fall Protection 1400052 A5 Concrete Expansion Anchor

Product Description

The GUARDIAN FALL PROTECTION 1400052 is an A5 Concrete Expansion Anchor designed to provide a secure, reusable anchorage point in cured concrete substrates. Built from high-strength steel, this anchor is rated to 5,000 pounds and serves as a connection point for personal fall arrest systems on construction and maintenance job sites. The expansion-style design locks firmly into a properly drilled and prepared hole, delivering a consistent hold that meets OSHA and ANSI anchorage requirements. Licensed fall protection contractors and safety-trained crews rely on this anchor where a permanent or temporary overhead anchor is required in concrete.

The 1400052 is suited for both commercial construction and ongoing facility maintenance applications where workers need a tested anchorage point in cured concrete. It is designed for single-user personal fall arrest system tie-off and is appropriate for horizontal and overhead concrete surfaces. Because it is reusable, it works well in scenarios where an anchor must be installed, used, and then removed after the work is complete, reducing the need for permanent embedded hardware on every project.

Key Features

• High-strength steel construction for durability in field conditions
• Expansion anchor design locks securely into drilled cured-concrete holes
• Rated to 5,000 pounds, meeting OSHA and ANSI anchorage load requirements
• Reusable design allows installation, removal, and redeployment across multiple work sites
• Compact profile simplifies installation and storage

Compatibility

Designed for use with personal fall arrest systems anchored to cured concrete surfaces. Suitable as a tie-off anchor point for compatible lanyards, self-retracting lifelines, and other ANSI-compliant fall arrest components that connect to a standard anchor ring or connector point.

Installation Notes

Installation is performed by a qualified person familiar with fall protection anchorage requirements under OSHA 29 CFR 1926.502 and applicable ANSI Z359 standards. The concrete substrate must be fully cured and free of voids, cracks, or spalling at the installation point. Drill the anchor hole to the diameter and depth specified by the anchor manufacturer before setting the expansion mechanism. Inspect the installed anchor and the surrounding concrete for integrity before attaching any fall arrest equipment.

Technical Specifications

• Model: 1400052
• Type: A5 Concrete Expansion Anchor
• Material: High-strength steel
• Load Rating: 5,000 pounds
• Application: Anchoring in cured concrete surfaces
• Includes: 1 A5 Concrete Expansion Anchor
• Compliance: OSHA-compliant, ANSI-compliant

Standard Information

• Brand: GUARDIAN FALL PROTECTION
• Manufacturer Part Number: 1400052
