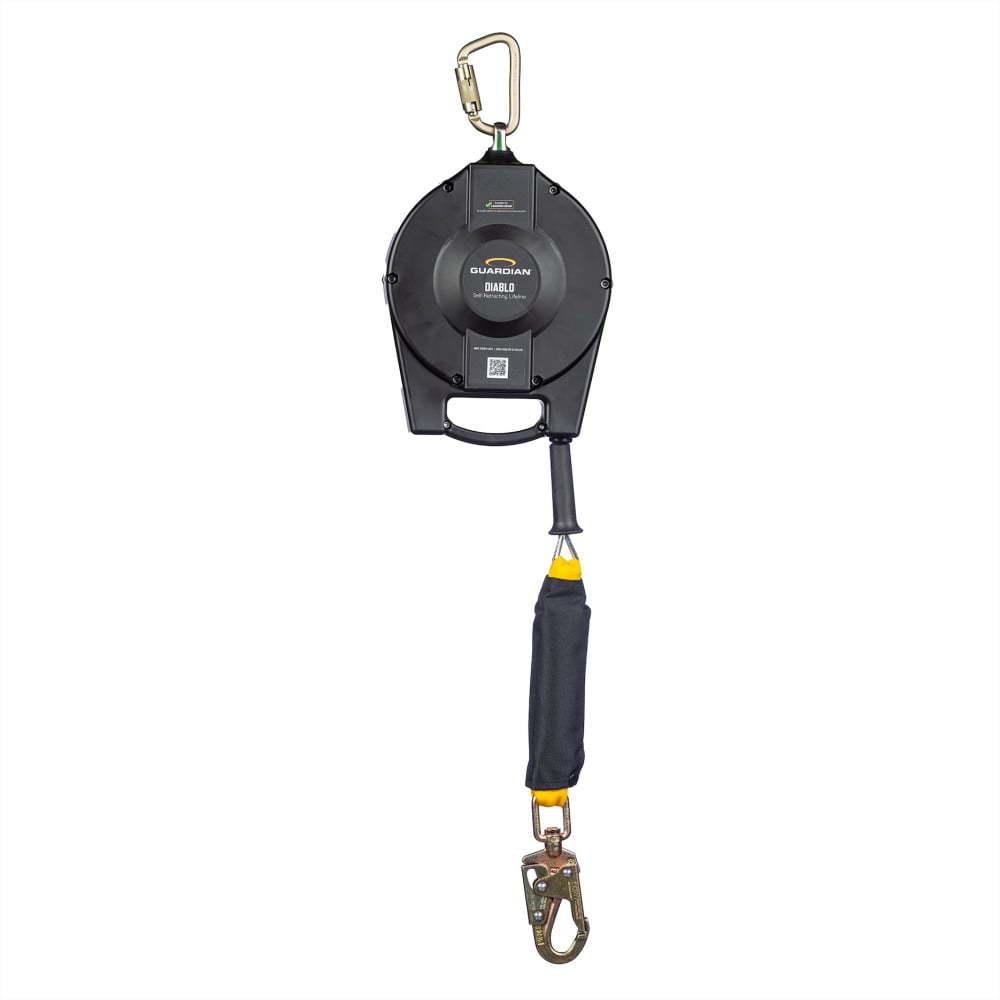

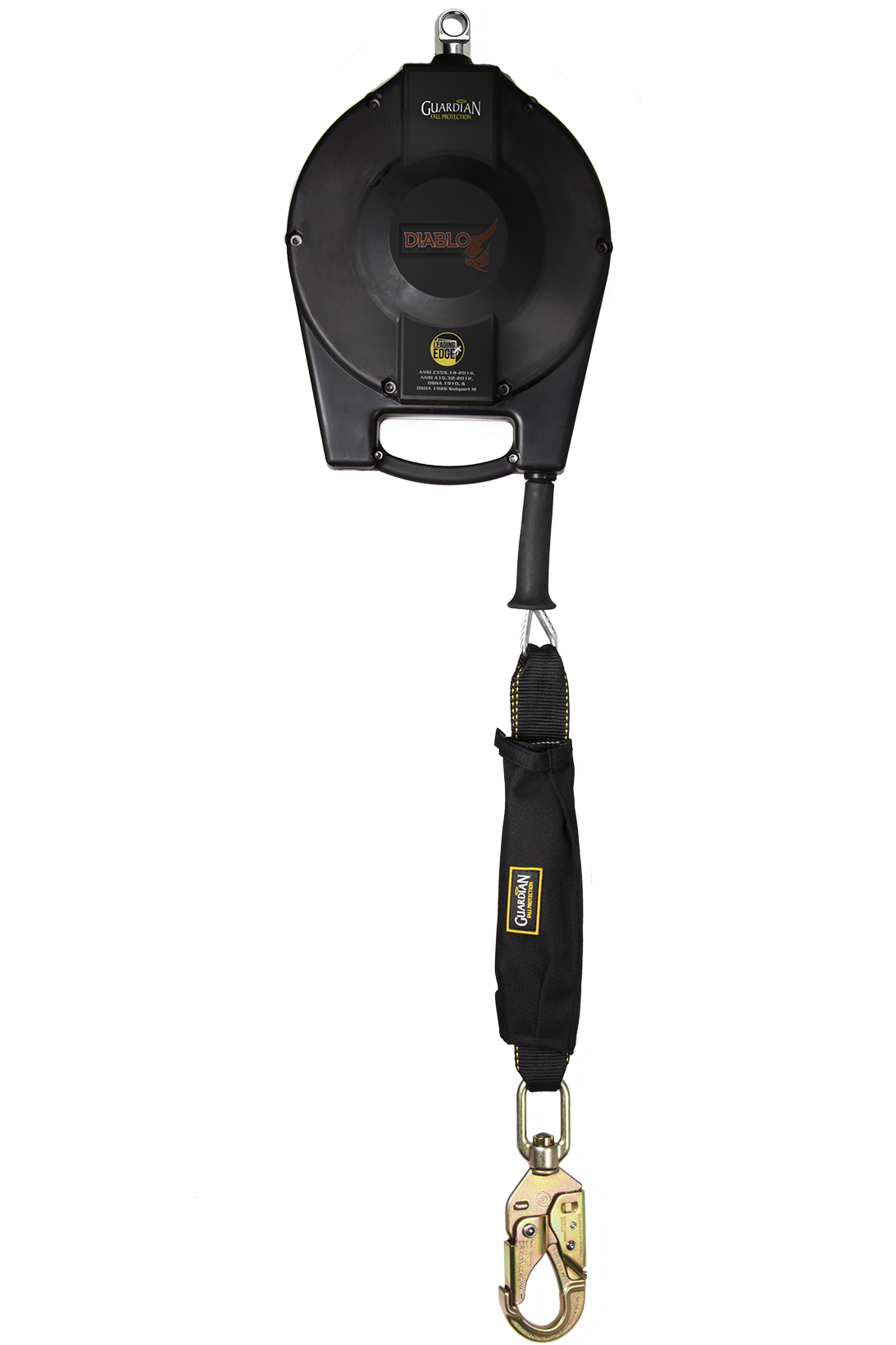

The Guardian Fall Protection 10967 Diablo Big Block is a 65 ft self-retracting lifeline (SRL) designed for leading edge (LE) fall arrest applications. It features a galvanized steel lifeline, ABS housing with an ergonomic carry handle, coated and heat-treated brake pawl bolts, and an integrated shock absorber with quick-action braking for controlled deceleration. The unit includes a swivel top and steel connector options for overhead mounting and worker anchorage.
65 ft galvanized steel lifeline with galvanized steel snap hook and included carabiner
High-strength ABS housing with ergonomic carrying handle, integrated shock absorber, and quick-action braking
Rated for leading edge applications; coated, heat-treated brake pawl bolts and non-corrosive internal components
Product Highlights
65 ft SRL with galvanized steel cable; ABS housing; leading edge rated; integrated shock absorber; meets ANSI and OSHA standards
Product Information
Standard Information
Brand: GUARDIAN FALL PROTECTION
Manufacturer Part Number: 10967
Country of Origin: United States
Technical Specifications
Brand
Guardian Fall Protection
Manufacturer Part Number
10967
Product SKU / Part #
WBB2382775
Series
Diablo Big Block Cable SRL-LE
Model
10967
Type
Heavy Duty self-retracting lifeline (SRL)
Lifeline Length
65 ft
Lifeline Material
Galvanized steel
Line Material
Galvanized Steel
Cable Material
Galvanized Steel
Housing Material
ABS
Handle Material
High strength ABS
Number of Legs
1
Mounting Location
Overhead
Application Rating
Leading Edge (LE)
Intended use
Leading Edge (LE) fall arrest
Load Capacity
130 - 420 lbs
Weight
21.9 lbs
Dimensions (L x W x H)
22.75 x 14.5 x 4.25 inches
Hook Opening
13/16 in
Harness Connection
Steel snap hook
Anchorage Connection
Carabiner
Harness Connection Material
Steel
Anchorage Connection Material
Steel
Includes
Carabiner, swivel top, steel snap hook
Integral Shock Absorber
Yes
Brake Pawl Bolts
Coated and heat-treated (grade 8)
Internal Components
Aluminum, treated steel, stainless steel; machined critical parts
Quick-action Braking System
Yes
Average Arresting Force
Approx. 900 lb
Maximum Arrest Distance
54 in
Certifications
ANSI Z359.14-12; ANSI A10.32-12; OSHA 1926 Subpart M; OSHA 1910
