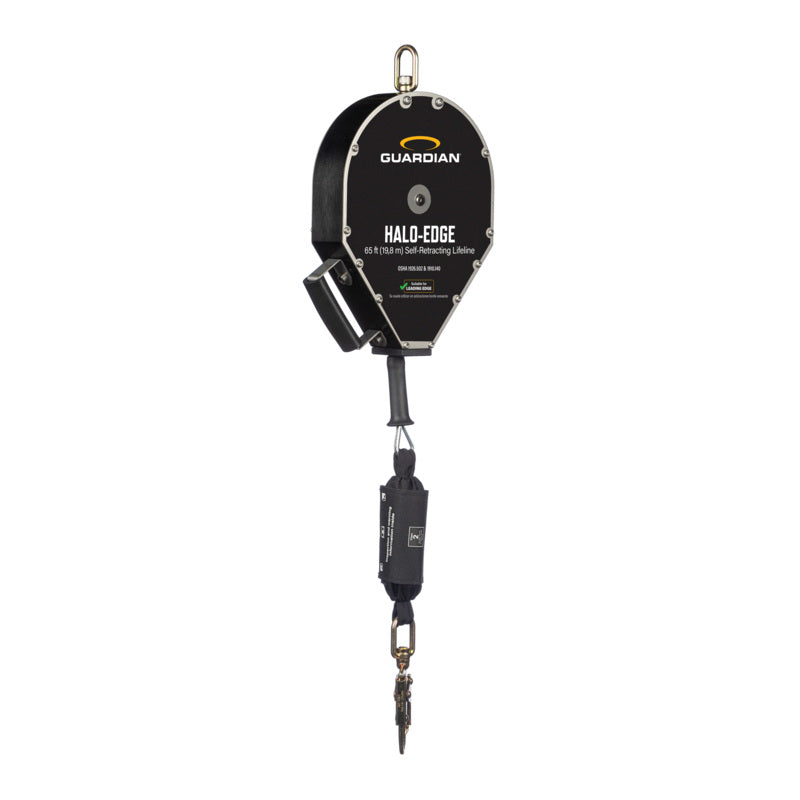

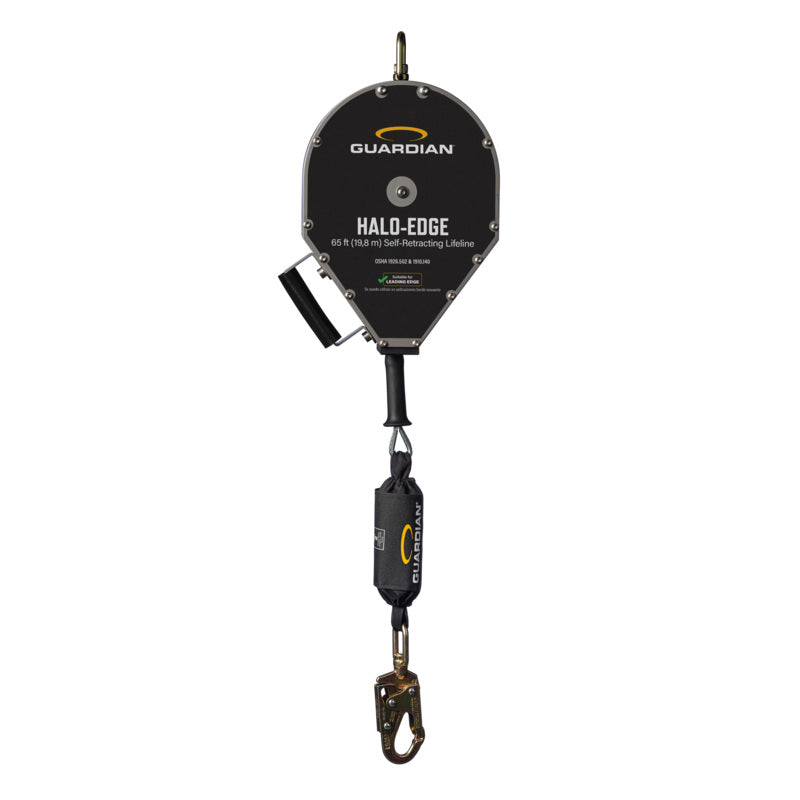

Guardian Fall Protection 10928 Heavy Duty Edge Series Self-Retracting Lifeline (65 Foot)

Product Description

The Guardian Fall Protection 10928 is a Heavy Duty Edge Series self-retracting lifeline (SRL) with a 65-foot galvanized cable designed for leading-edge applications. The unit includes an integrated heavy-duty shock pack with a removable protective cover to limit arresting forces, a swivel top connection and included carabiner for attachment, and a lightweight compact aluminum housing with a quick-action braking mechanism. It is compliant with OSHA leading-edge standards.

• 65-foot galvanized steel cable configured for leading-edge use with swivel top connection
• Integrated heavy-duty shock pack that helps limit average arresting forces to 900 lb or less; removable protective cover
• Included carabiner and swivel self-locking snap hook, lightweight aluminum housing, foam-padded handle, and quick-action brake

Product Highlights

Leading-edge rated 65 ft SRL with integrated shock absorber, swivel top connectors, and protective cover

Product Information

Standard Information

• Brand: GUARDIAN FALL PROTECTION
• Manufacturer Part Number: 10928

Technical Specifications

• Brand: Guardian Fall Protection
• MPN: 10928
• Product Name: Heavy Duty Edge Series Self-Retracting Lifeline
• Product Type: Self-retracting lifeline (SRL) - Leading Edge
• Lifeline Length: 65 ft
• Lifeline Material: Galvanized steel
• Cable Diameter: 3/16 in.
• Housing: Lightweight, compact aluminum housing
• Integrated Shock Absorber: Yes (heavy-duty shock pack)
• Shock Pack Removable Cover: Yes
• Carabiner Included: Yes
• Connector: Swivel top; swivel 3/4" self-locking snaphook; dual-lock carabiner
• Average Arrest Force: 64 900 lb
• Maximum Arrest Force: 1,800 lb
• Worker Capacity Range (LE): 130 - 310 lb
• Worker Capacity Range (Non-LE): 130 - 420 lb
• Maximum Arrest Distance (Non-LE): 54 in
• Maximum Arrest Distance (LE): Up to 102 in
• Minimum Setback Distance from Edge (LE): 6 ft
• Fall Clearance (LE): 17 - 21 ft
• Fall Clearance (Non-LE): 9 ft
• Class: Class B SRL
• Intended Use: Leading edge work; overhead anchoring and foot-level tie-off near a leading edge
• Standards / Compliance: OSHA 1910.140; OSHA 1926.502; ANSI Z359.14 (referenced)
• Weight: 762 g (1.68 lb)
• Dimensions (Length x Height): 22.75 in x 8.25 in
• Includes: 65 ft SRL, integrated shock pack, removable protective cover, carabiner, swivel top connector, foam-padded handle
