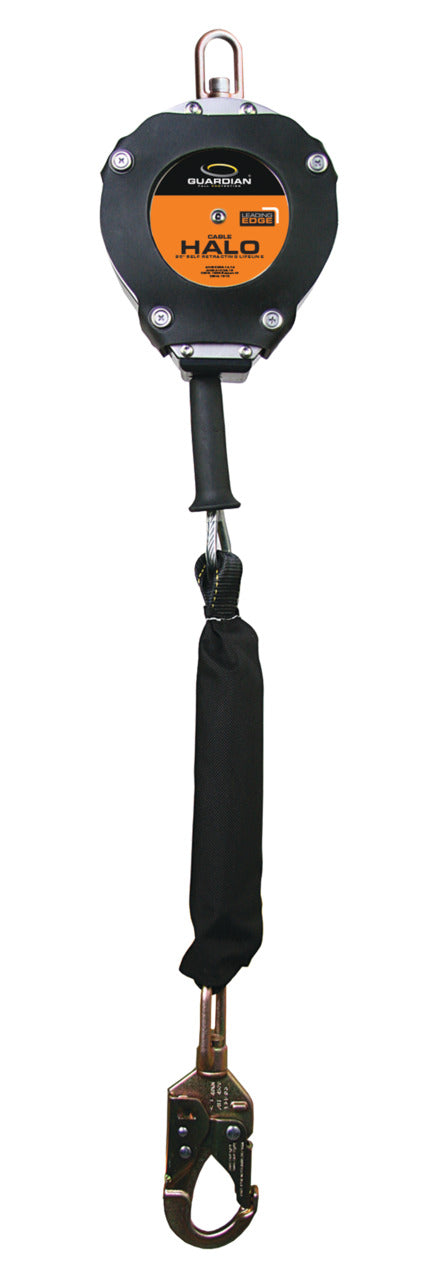

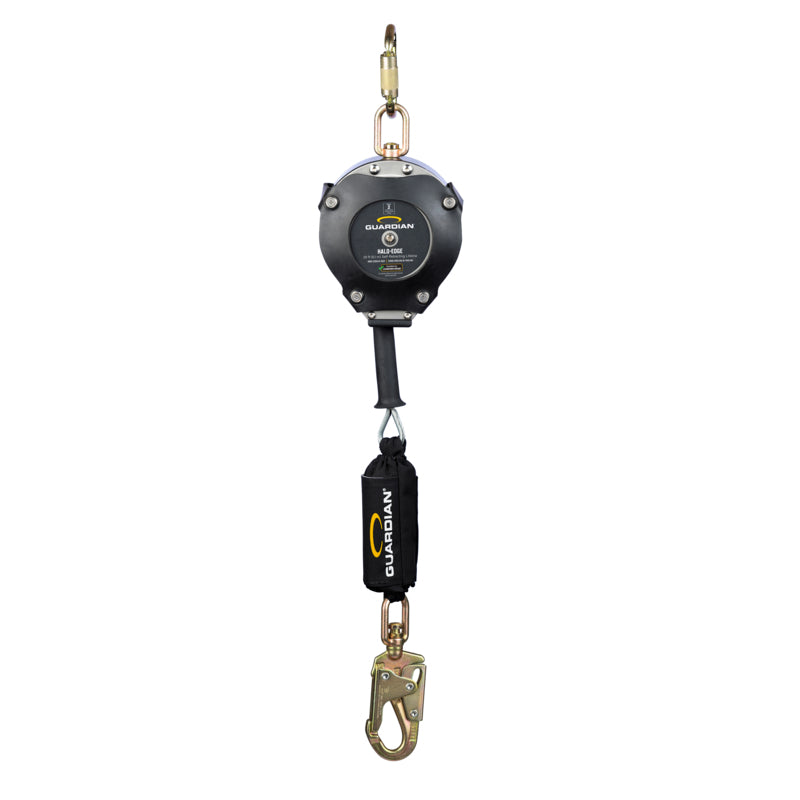

Guardian Fall Protection 10920 Halo Cable SRL-LE Self-Retracting Lifeline 20 ft

Product Description

Guardian Fall Protection 10920 Halo Cable SRL-LE is a self-retracting lifeline designed for leading edge (LE) applications. The unit uses a 20 ft galvanized steel lifeline with zinc-plated hardware and a built-in shock-absorbing component that redirects forces away from the cable at an edge. It is certified to relevant ANSI and OSHA fall protection standards and is intended for construction and other industrial uses.

• 20 ft galvanized steel lifeline, zinc-plated steel hardware, 5000 lb tensile strength
• Integrated shock-absorbing component for leading-edge use; rated for LE applications
• Swivel top connection and swivel snap hook with impact indicator; Class B rated; maximum deceleration distance 54 inches

Product Highlights

Class B self-retracting lifeline certified for leading-edge work with a 20 ft galvanized steel cable and multiple ANSI/OSHA compliances.

Product Information

Standard Information

• Brand: GUARDIAN FALL PROTECTION
• Manufacturer Part Number: 10920
• Country of Origin: United States

Technical Specifications

• Brand: Guardian Fall Protection
• Manufacturer Part Number: 10920
• Model/Series: Halo Cable SRL-LE
• Type: Self-Retracting Lifeline (SRL)
• Class: Class B rated retractable
• Length: 20 ft
• Lifeline Material: Galvanized steel
• Cable Diameter: 3/16 in
• Hardware Material: Zinc-plated steel
• Tensile Strength: 5000 lbs
• Load Capacity: 130 - 420 lbs
• LE Capacity: 130 - 310 lbs
• Maximum Deceleration Distance: 54 inches
• Top Connection: Swivel top connection (360°)
• Snap Hook: Swivel snap hook with impact indicator
• Includes: Carabiner, protective boot cover, shock pack cover
• Housing/Components: All-metal heavy-duty housing; stainless steel and non-corrosive components
• Weight: 14.68 lb (6.66 kg)
• Dimensions (approx): 9.5 in (length) x 5 in (height)
• Snap Hook Gate Strength: 3,600 lb (snap hook gate strength)
• Shock Absorber: Integrated shock-absorbing component (Guardian shock pack cover)
• Intended Use: Leading edge applications
• Intended Industries: Construction; Mining; Transportation; Oil & Gas; Telecoms; General Industry; Renewables
• Certifications/Standards: ANSI Z359.14-14; ANSI A10.32-12; OSHA 1926 Subpart M; OSHA 1910
