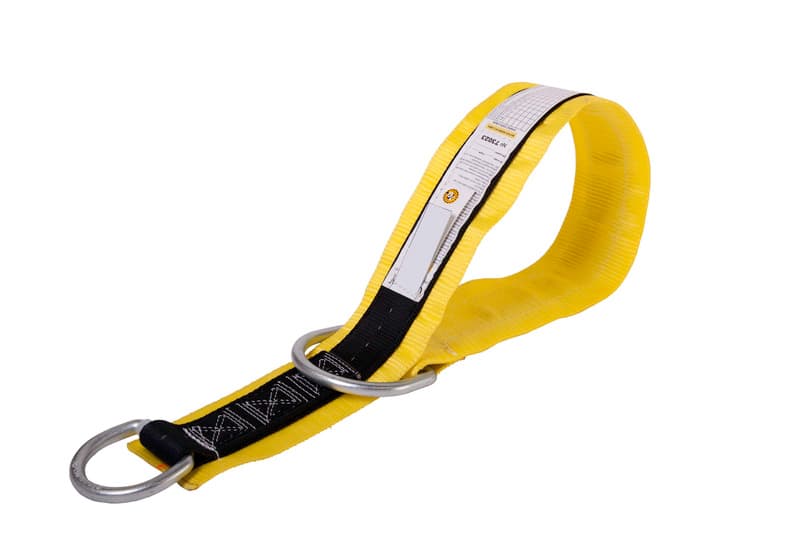

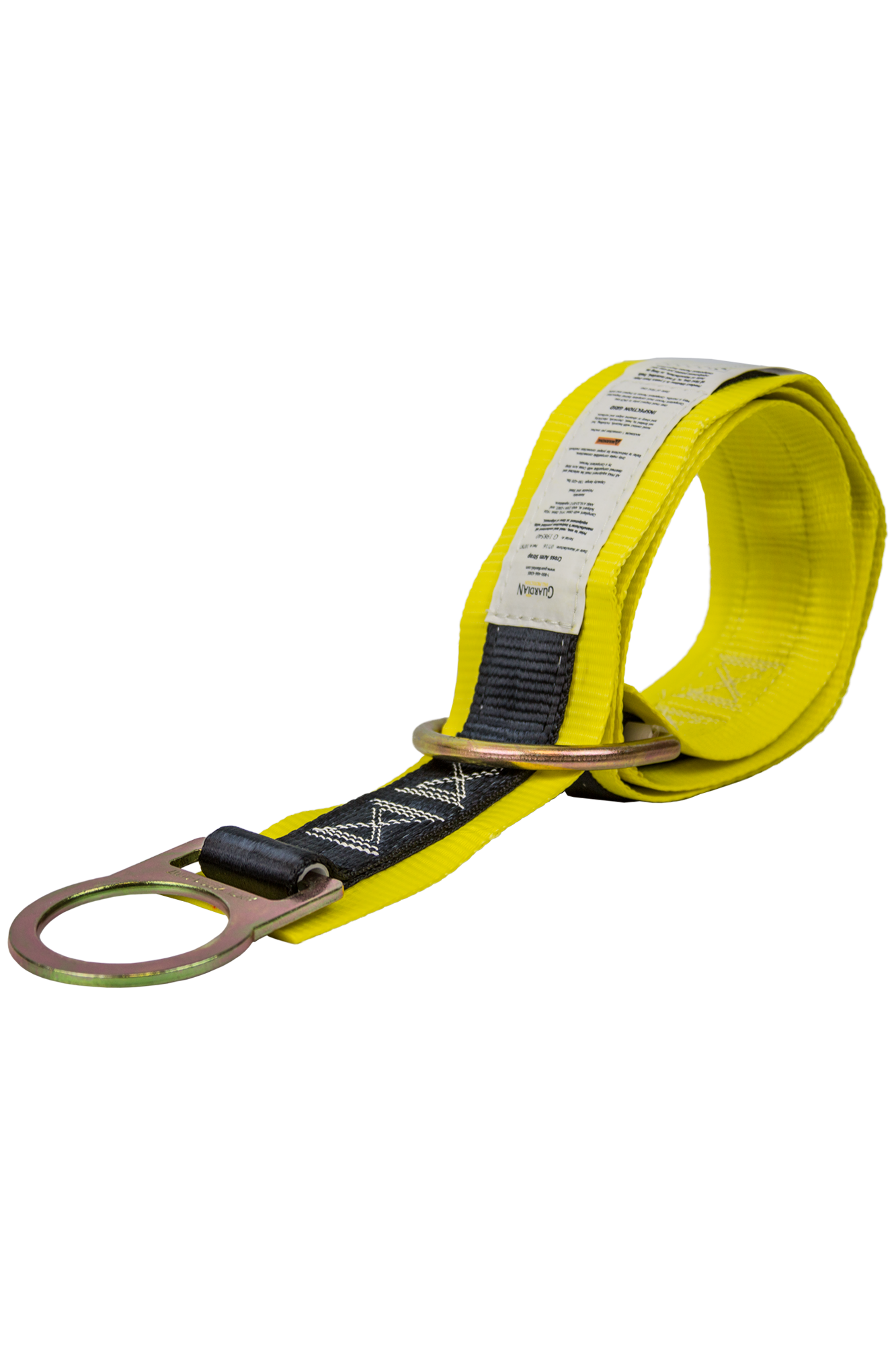

Guardian Fall Protection 10790 Premium Cross Arm Strap 10 ft

Product Description

Guardian Fall Protection 10790 is a premium cross arm strap anchorage connector designed for fall protection applications. The reusable 10 ft strap is constructed of reinforced polyester webbing with galvanized steel and nylon components and includes large and small D-rings for pass-through length adjustment. It meets multiple ANSI and OSHA standards and is compatible with lanyards and self-retracting lifelines for use on steel beams and other structural anchors.

• Reinforced polyester webbing with heavy-duty stitching and wear pad for increased durability
• Large D-ring and standard small D-ring for pass-thru cinch and connection to lanyards or SRLs
• Meets ANSI and OSHA fall protection standards; reusable anchorage connector

Product Highlights

Reusable 10 ft premium cross-arm anchorage strap with reinforced webbing, large and small D-rings, compatible with lanyards and SRLs; conforms to ANSI and OSHA standards.

Product Information

Standard Information

• Brand: GUARDIAN FALL PROTECTION
• Manufacturer Part Number: 10790
• Country of Origin: United States

Technical Specifications

• Brand: GUARDIAN FALL PROTECTION
• Manufacturer Part Number: 10790
• Model: Premium Cross Arm Strap
• Type: Anchorage connector (cross arm strap) / Premium
• Length: 10 ft
• Available Lengths: 3 ft, 4 ft, 6 ft, 8 ft, 10 ft, 12 ft, 15 ft, 20 ft, 30 ft
• Material: Polyester webbing; galvanized steel hardware; nylon webbing components
• Hardware: Large D-ring and standard small D-ring
• Minimum Breaking Strength: 5000 lbs
• Worker Capacity Range: 130 - 420 lbs
• Reusable: Yes
• Standards / Compliance: ANSI Z359.1-07; ANSI A10.32-12; ANSI Z359.18; OSHA 1910; OSHA 1926 Subpart M; OSHA 1926.502; OSHA 1910.140
• Product Weight: 2.3 lb (1.04 kg)
• Mounting Type: Loop-over beam / cinch-down anchorage
• Country of Origin: United States
• Industries: Construction; General industry
