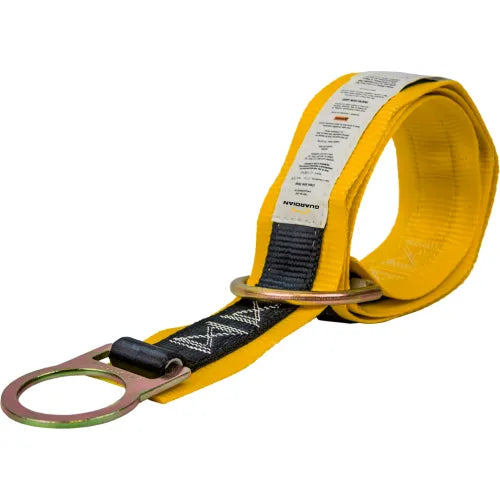

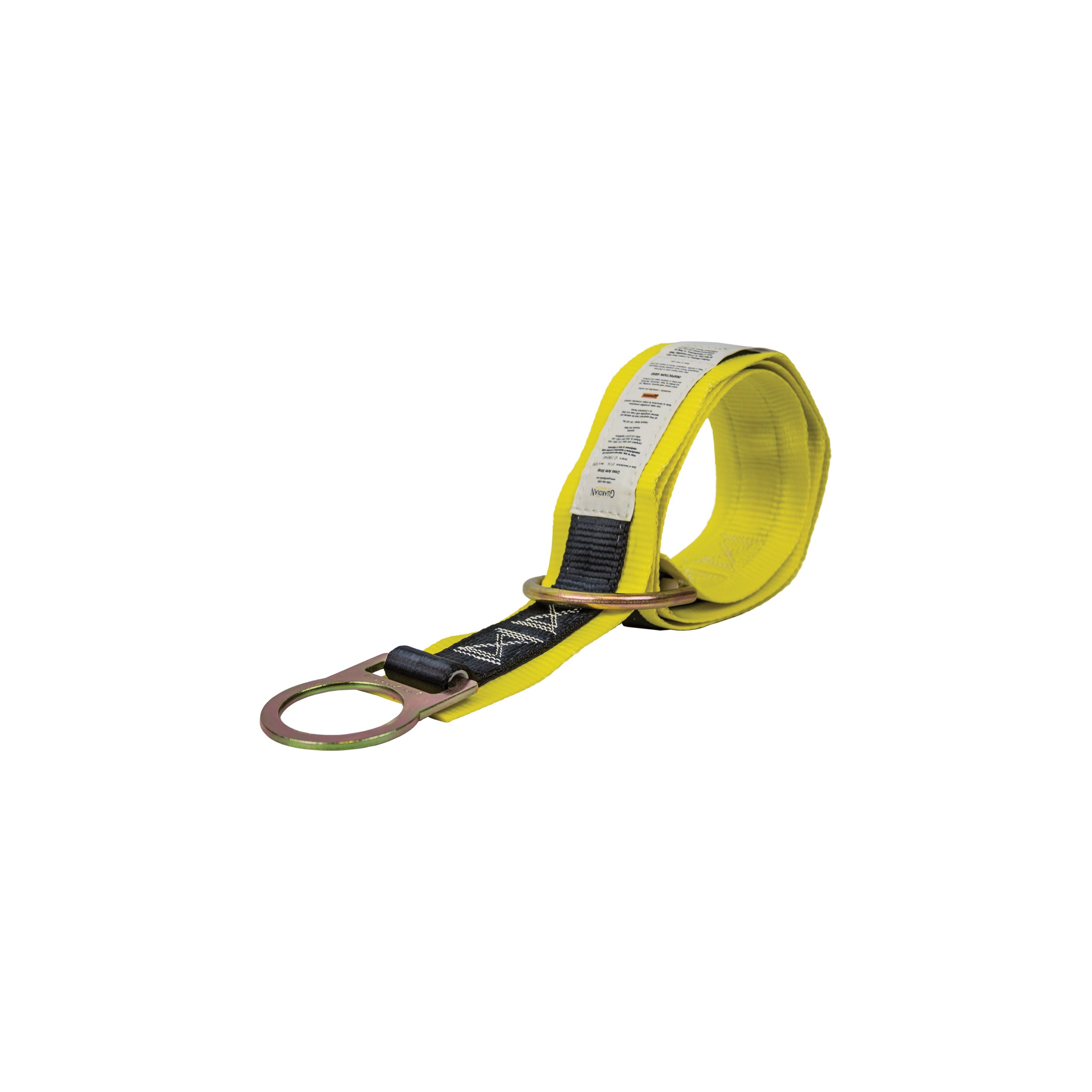

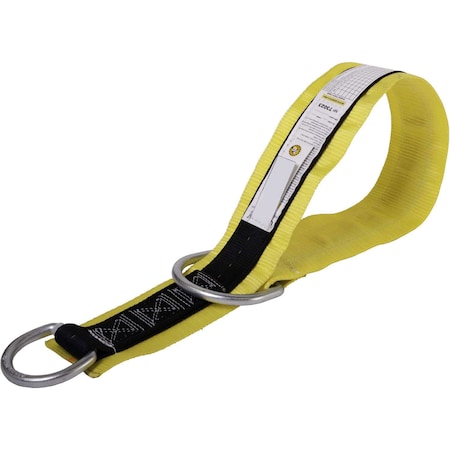

Guardian Fall Protection 10787 Premium Cross Arm Strap 6 ft

Product Description

The Guardian Fall Protection Premium Cross Arm Strap is a reusable anchorage connector that can be used in a variety of fall protection applications. Premium Cross Arm Straps are manufactured with a reinforced webbing for superior durability and functionality compared to standard models. To use, loop over a steel support beam or other compatible anchor, and pull the small D-ring through the second, larger D-ring.

• Loops and fastens around steel support beam or compatible anchor
• Convenient loop eliminates need for fasteners/penetration
• Surfacetech webbing makes webbing resistant to dirt, mold, and other contaminants

Product Highlights

Easy to install with superior durability. Compatible with horizontal lifelines. Meets ANSI Z359.18-17, ANSI A10.32-12, OSHA 1926 Subpart M, OSHA 1910 standards. Suitable for personal fall arrest and restraint applications.

Product Information

Standard Information

• Brand: GUARDIAN FALL PROTECTION
• Manufacturer Part Number: 10787
• Country of Origin: United States

Technical Specifications

• Application: Personal Fall Arrest, Restraint
• Length: 6 ft
• Material: Galvanized Steel/Polyester
• Brand Name: Guardian Fall Protection
• Manufacturer: Guardian Fall Protection
• Standard Approvals: ANSI Z359.18-17, ANSI A10.32-12, OSHA 1926 Subpart M, OSHA 1910
• Tensile Strength: 5000 lb
• Weight Capacity: 420 lb
• Warranty: 2 yr
• Type: Premium
• Style: D-Ring
• Ring Type: O-Ring
• Depth: 11 in
• Width: 6 in
• Description: Premium Cross Arm Strap, O-Ring
• Height: 2 in
• Weight: 2 lbs
• Install Type: Reusable
• Attachment Type: D-Ring
• Manufacturers Part Number: 10787
• Minimum service temperature: -30 100% Minimum Form Fitting at 80% stretch
• Product Weight: 1.8 LB / 0.82 KG
• Product Length: 10 '' / 25.40 CM
• Product Height: 2 '' / 5.08 CM
• Compliance: OSHA 1910.140, OSHA 1926.502, ANSI Z359.18
• Industries: Construction, General Industry
