Guardian Fall Protection 10541 Pitch Pro Slotted Roof Anchor

Product Description

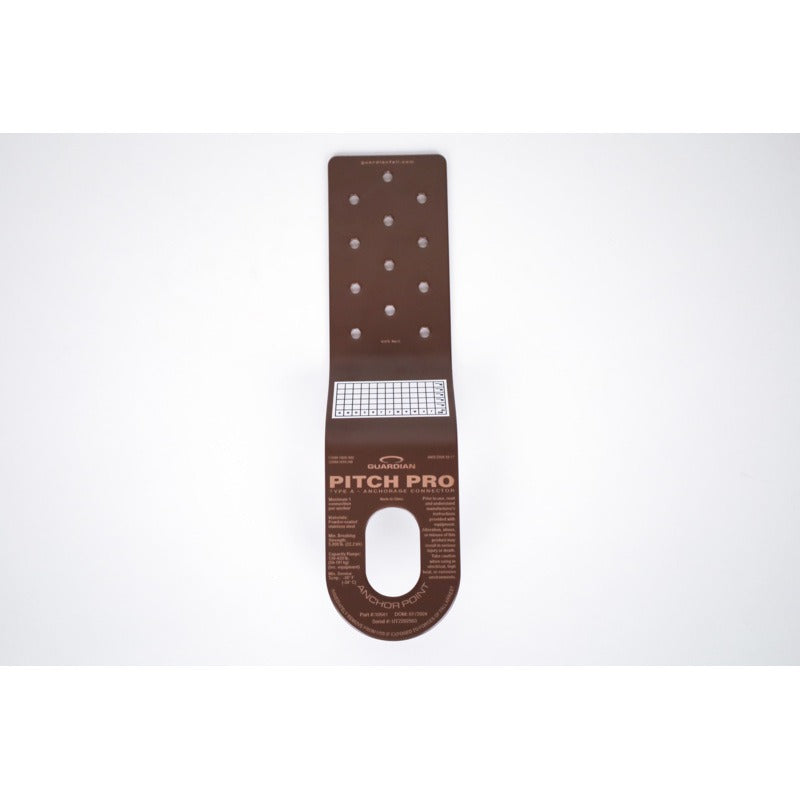

The GUARDIAN FALL PROTECTION 10541 Pitch Pro Slotted Roof Anchor is a permanent fall protection anchor designed for residential sloped-roof applications. It provides a secure tie-off point for personal fall arrest systems on asphalt shingle roofs. Constructed from high-strength steel with a brown powder-coated finish, it delivers long-term corrosion resistance in outdoor conditions. The low-profile design seats beneath shingles to keep the anchor discreet after installation. The oversized D-ring connection point allows fast attachment to a harness or lanyard. Minimum breaking strength is 5,000 pounds, and the rated capacity range is 130 to 420 pounds including all equipment and tools.

This anchor is suited for residential roofing contractors, home builders, and maintenance professionals working on sloped asphalt shingle roofs. It is intended as a permanent anchorage point that remains in place after the roofing job is complete, providing a ready tie-off for future maintenance, inspection, or repair work. The slotted design accommodates mounting to wood, metal, or concrete substrates, making it adaptable across common residential roof framing systems. It meets OSHA 1910, OSHA 1926 Subpart M, ANSI Z359.18, and ANSI A10.32-12 compliance requirements.

Key Features

• Minimum breaking strength of 5,000 pounds for reliable load capacity
• Rated working capacity of 130 to 420 pounds including all equipment
• Brown powder-coated steel construction for corrosion resistance and low-profile appearance
• Low-profile design installs beneath shingles without visible protrusion
• Oversized D-ring for quick and positive attachment of fall arrest hardware
• Compatible with wood, metal, or concrete roof substrates
• Compliant with OSHA 1910, OSHA 1926 Subpart M, ANSI Z359.18, and ANSI A10.32-12

Compatibility

Designed for permanent installation on residential sloped roofs with asphalt shingle construction. Suitable for mounting to wood, metal, or concrete substrates. Intended for use with personal fall arrest systems meeting applicable ANSI Z359 and OSHA standards.

Installation Notes

Installation should be performed by a qualified roofing contractor or competent person as defined under OSHA 1926 Subpart M. Anchor placement must be made into structural roof members capable of supporting the rated load. Follow the manufacturer installation instructions for fastener type, pattern, and substrate requirements. Do not install or remove the anchor while a worker is attached to it.

Technical Specifications

• Minimum Breaking Strength: 5,000 pounds
• Capacity Range: 130 to 420 pounds including all equipment
• Material: High-strength steel
• Finish: Brown powder coat
• Installation Type: Permanent
• Substrate Compatibility: Wood, metal, or concrete
• Standards Compliance: OSHA 1910, OSHA 1926 Subpart M, ANSI Z359.18, ANSI A10.32-12

Standard Information

• Brand: GUARDIAN FALL PROTECTION
• Manufacturer Part Number: 10541
