Guardian Fall Protection 10011 Swivel Anchor 10K (Single) 10011

Product Description

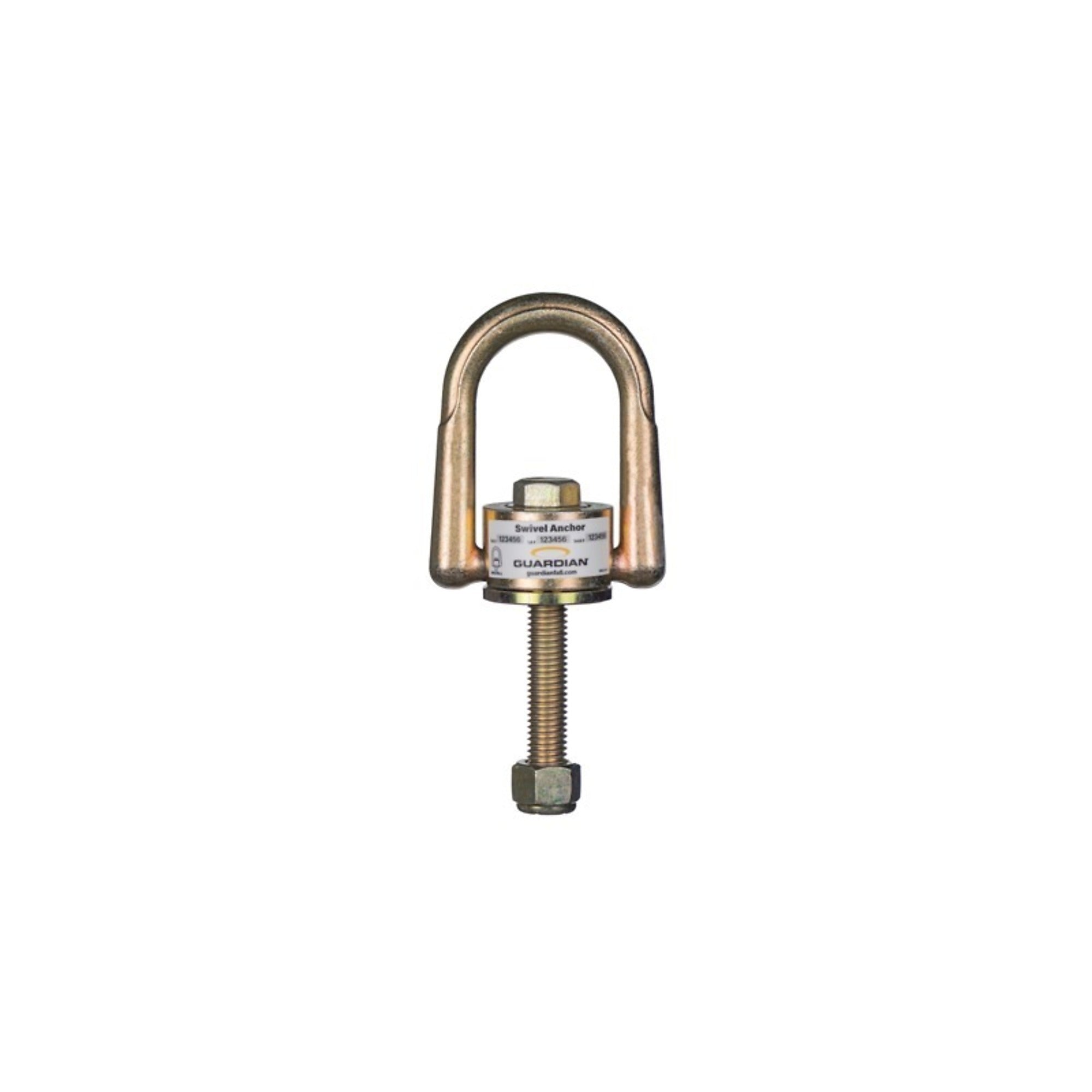

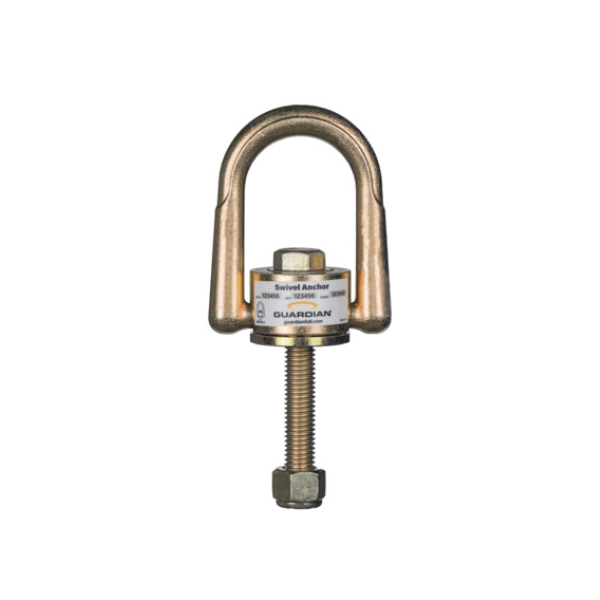

The Guardian Fall Protection 10011 Swivel Anchor is a swiveling anchorage connector rated to provide a 10K (10,000 lb) anchor point. It mounts to concrete or metal substrates and features a full-size D-ring with a dual swivel for 360-degree mobility. Available configurations include a concrete expansion anchor, adjustable bolt assembly, or weld-on puck for temporary and permanent single anchoring points and temporary horizontal lifeline systems. The product meets ANSI Z359.18-2017 and OSHA 1910.140 / 1926.502.

• Anchor rating: 10K (10,000 lb) anchor point with full-size D-ring
• Dual swivel provides 360-degree movement for connection mobility
• Available configurations: concrete expansion anchor, adjustable bolt assembly, weld-on puck

Product Highlights

Swiveling anchorage connector for concrete and metal with 10K rating, dual swivel mobility, multiple attachment configurations; ANSI and OSHA compliant.

Product Information

Standard Information

• Brand: GUARDIAN FALL PROTECTION
• Manufacturer Part Number: 10011
• Country of Origin: United States

Technical Specifications

• Brand: Guardian Fall Protection
• Manufacturer Part Number: 10011
• Product Name: Swivel Anchor
• Suitable Substrates: Concrete and metal
• Anchor Rating: 10K (10,000 lb)
• Movement: 360 degrees (dual swivel)
• Attachment: Full-size D-ring
• Available Configurations: Concrete expansion anchor; adjustable bolt assembly; weld-on puck
• Intended Applications: Single anchoring point installations; temporary horizontal lifeline systems; temporary and permanent applications
• Compliance: ANSI Z359.18-2017; OSHA 1910.140; OSHA 1926.502
• Material: Steel
• Tensile Strength: 10,000 lb
• Bolt Size: 5/8 in - 11 x 4 in grade bolt
• Temperature Range: -40 °C to 54 °C
• Country of Origin: United States
• Weight: 2.27 lb
• Dimensions: 7.55 x 3.54 x 1.97 in
