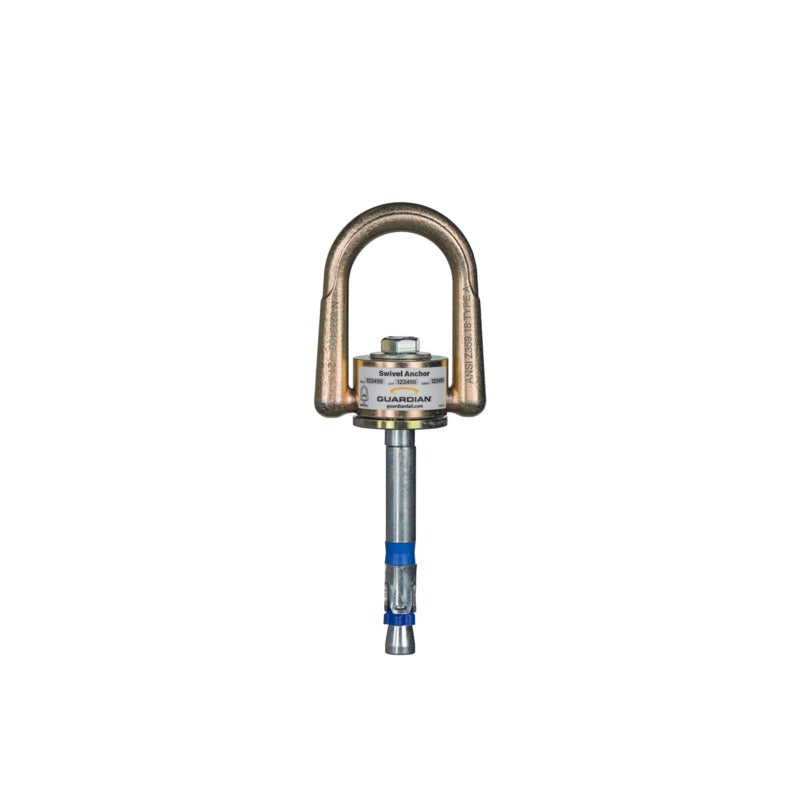

Guardian Fall Protection 10010 Swivel Anchor

Product Description

The GUARDIAN FALL PROTECTION 10010 is a swivel anchorage connector designed for fall protection applications on both concrete and metal substrates. It features a full-size D-ring for fast, secure lanyard and connector attachment, plus a dual swivel mechanism that provides 360 degrees of rotational mobility. The 10010 delivers a 10,000-pound anchor point rating, making it suitable for a range of jobsite configurations. Licensed safety professionals and qualified riggers typically specify and install this type of anchor as part of a compliant personal fall arrest system.

The 10010 is intended for use in residential, commercial, and industrial fall protection setups where a reliable, high-strength anchorage point is required on concrete or steel surfaces. It is available in multiple mounting configurations, including a concrete expansion anchor assembly, an adjustable bolt assembly, and a weld-on puck, allowing installation across a variety of structural conditions without requiring a different anchor product for each substrate type.

Key Features

• 10,000-pound anchor point capacity for fall arrest applications
• Full-size D-ring for easy attachment of lanyards, self-retracting lifelines, and snap hooks
• Dual swivel design allows 360-degree rotation, reducing lanyard twist and snag risk
• Compatible with concrete expansion anchor, adjustable bolt assembly, or weld-on puck mounting options
• Suitable for both concrete and metal substrate installations

Compatibility

Designed for use with standard personal fall arrest system components including lanyards, snap hooks, and self-retracting lifelines on concrete and metal structural substrates. Available mounting configurations support a wide range of jobsite anchor point requirements.

Installation Notes

Installation must be performed by a competent person familiar with fall protection regulations, including applicable OSHA standards and manufacturer instructions. Shut down work in the fall zone and verify structural integrity of the substrate before anchoring. Select the correct mounting assembly for the substrate type and follow torque and embedment requirements specified by the mounting hardware manufacturer. The anchor point must be inspected before each use and removed from service if damaged or subjected to a fall event.

Technical Specifications

• Anchor Point Capacity: 10,000 pounds
• Connector Type: Full-size D-ring with dual swivel
• Swivel Range: 360 degrees
• Compatible Substrates: Concrete, metal
• Mounting Options: Concrete expansion anchor, adjustable bolt assembly, weld-on puck

Standard Information

• Brand: GUARDIAN FALL PROTECTION
• Manufacturer Part Number: 10010
