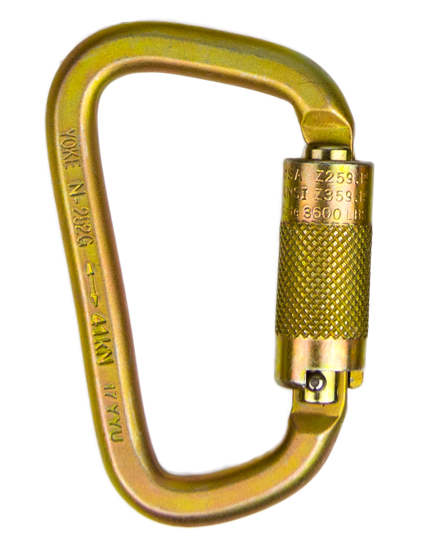

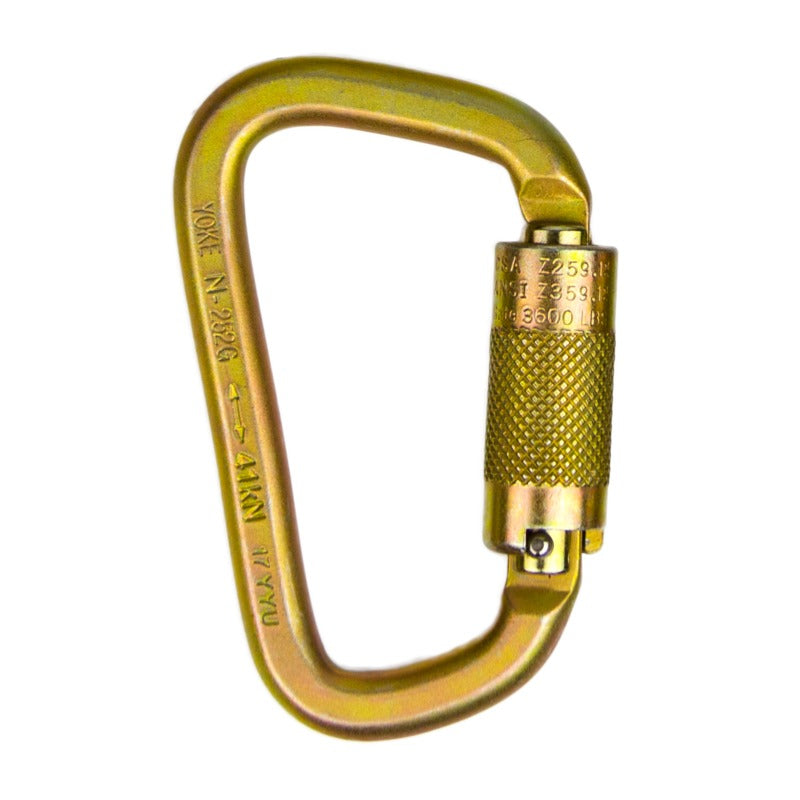

Guardian Fall Protection 01837 Double-Locking Carabiner (3/4 inches Gate)

Product Description

Guardian Fall Protection 01837 is a double-locking carabiner with a 3/4 in gate designed for one-hand operation. The forged steel connector has a self-closing, self-locking double-action gate rated to 3,600 lbs at the gate and 5,000 lbs along the major axis. It measures 3 in by 1 in, weighs 0.5 lb, and is intended to attach lanyards or lifelines to anchorages in compliance with OSHA and ANSI standards.

• Rated 5,000 lbs along the major axis and 3,600 lbs at the gate.
• Self-closing, double-locking (double-action) gate allowing one-hand operation.
• Forged steel construction; dimensions 3 in length x 1 in height; weight 0.5 lb (0.23 kg).

Product Highlights

Forged steel double-locking carabiner with 3/4 in gate; 5,000 lb major axis rating; OSHA and ANSI compliant.

Product Information

Standard Information

• Brand: GUARDIAN FALL PROTECTION
• Manufacturer Part Number: 01837

Technical Specifications

• Brand: Guardian Fall Protection
• Manufacturer Part Number: 01837
• SKU: 01837
• Type: Double-locking carabiner / forged pompier hook
• Material: Forged steel
• Gate opening: 0.75 in (3/4 in)
• Gate type: Double-locking, self-closing, self-locking (double-action)
• Operation: One-hand operation
• Rated major axis strength: 5,000 lbs
• Rated gate strength: 3,600 lbs
• Weight: 0.5 lb / 0.23 kg
• Length: 3 in / 7.62 cm
• Height: 1 in / 2.54 cm
• Intended use: Attach lanyards or lifelines to anchorages
• Compliance: OSHA 1926.502; OSHA 1910.140; ANSI Z359.12
