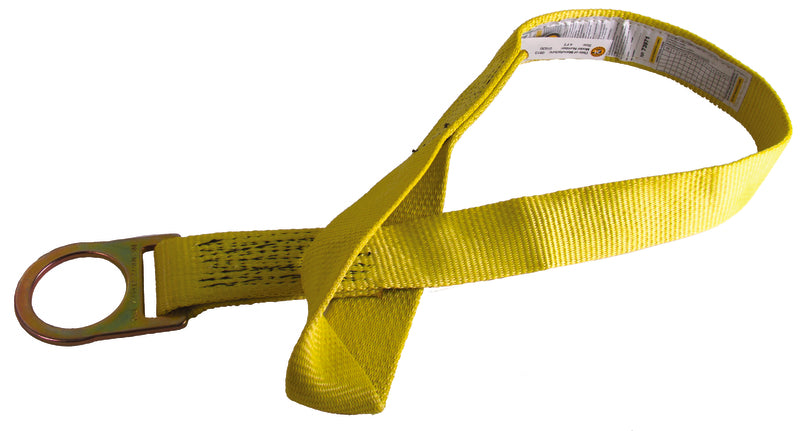

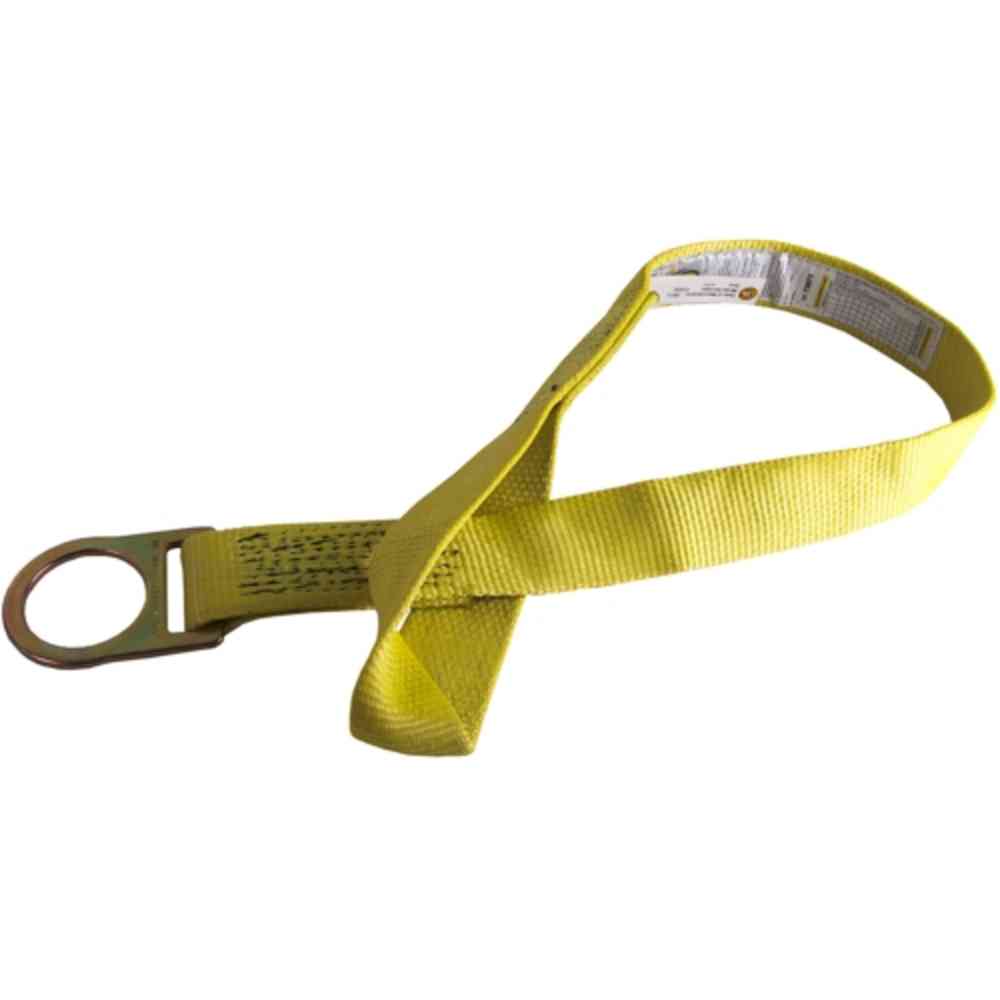

Guardian Fall Protection 01640 Cross Arm Strap 3 ft

Product Description

The Guardian Fall Protection 01640 Cross Arm Strap is a reusable cinch-down anchorage connector that wraps around compatible structures and is cinched through a large D-ring to establish a fall protection anchor point. The strap includes a protective reinforcing strap, is compatible with horizontal lifelines, and meets OSHA and ANSI anchorage connector requirements. Typical applications include construction, roofing, and general industrial fall protection systems.

• Cinch-down design with protective reinforcing strap for reusable anchorage
• Available anchor-end configurations: loop & large D-ring or large and small D-rings; compatible with horizontal lifelines
• Meets OSHA 1910.140, OSHA 1926.502, and ANSI Z359.18-2017 standards

Product Highlights

Reusable cinch-down anchorage connector with protective reinforcing strap, multiple anchor-end configurations, and OSHA/ANSI compliance for construction and general industry fall protection.

Product Information

Standard Information

• Brand: GUARDIAN FALL PROTECTION
• Manufacturer Part Number: 01640

Technical Specifications

• Brand: GUARDIAN FALL PROTECTION
• MPN: 01640
• Product type: Cinch-down style anchorage connector
• Material: Web strap with reinforcing strap (web loop)
• Length: 3 ft (36 in / 91.44 cm)
• Width: 2 in (5.08 cm) strap
• Product weight: 1.4 lb (0.64 kg)
• Anchor end configurations: Loop & Large D-Ring; Large and Small D-Rings
• D-rings: Large and small D-ring options depending on configuration
• Reusable: Yes
• Compatibility: Compatible with horizontal lifelines
• Application: Temporary anchorage connector for fall protection
• Standards / Compliance: OSHA 1910.140; OSHA 1926.502; ANSI Z359.18-2017
• Includes: 1 Cross Arm Strap Anchorage Connector
